RLK120 Ceramic Disc Capacitors

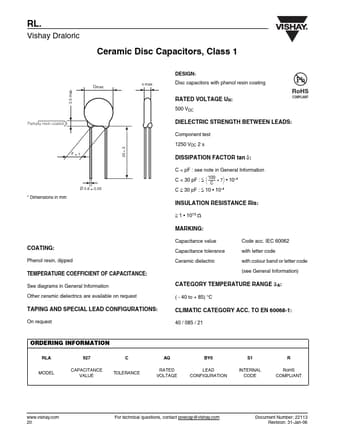

RL. Vishay Draloric Ceramic Disc Capacitors, Class 1 Dmax. Partially resin coated F±1 Dimensions in mm Ø 0.6 ± 0.05 3.5 max. 25 + 5 s max. COATING: Phenol resin, dipped TEMPERATURE COEFFICIENT OF CAPACITANCE: See diagrams in General Information Other ceramic dielectrics are available on request TAPING AND SPECIAL LEAD CONFIGURATIONS: On request DESIGN: Disc capacitors with phenol resin coating RATED VOLTAGE UR: 500 VDC RoHS COMPLIANT DIELECTRIC STRENGTH BETWEEN LEADS: Component.
