RLV101, RLV933 Datasheet - Vishay

RLV101 Ceramic Disc Capacitors

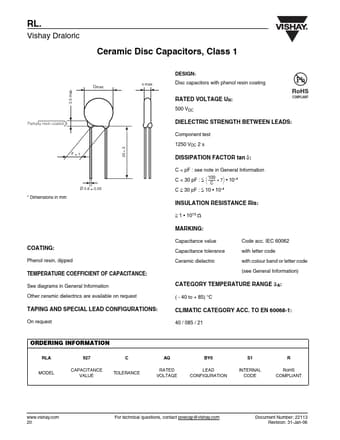

RL. Vishay Draloric Ceramic Disc Capacitors, Class 1 Dmax. Partially resin coated F±1 Dimensions in mm Ø 0.6 ± 0.05 3.5 max. 25 + 5 s max. COATING: Phenol resin, dipped TEMPERATURE COEFFICIENT OF CAPACITANCE: See diagrams in General Information Other ceramic dielectrics are available on request TAPING AND SPECIAL LEAD CONFIGURATIONS: On request DESIGN: Disc capacitors with phenol resin coating RATED VOLTAGE UR: 500 VDC RoHS COMPLIANT DIELECTRIC STRENGTH BETWEEN LEADS: Component.

RLV933-Vishay.pdf

This datasheet PDF includes multiple part numbers: RLV101, RLV933. Please refer to the document for exact specifications by model.
RLV101 Datasheet Preview Page 2 RLV101 Datasheet Preview Page 3

Datasheet Details

Part number:

RLV101, RLV933

Manufacturer:

Vishay ↗

File Size:

145.01 KB

Description:

Ceramic disc capacitors.

Note:

This datasheet PDF includes multiple part numbers: RLV101, RLV933.
Please refer to the document for exact specifications by model.
