RMK515N - Single Value Chip Resistors

Vishay

📥 Download Datasheet

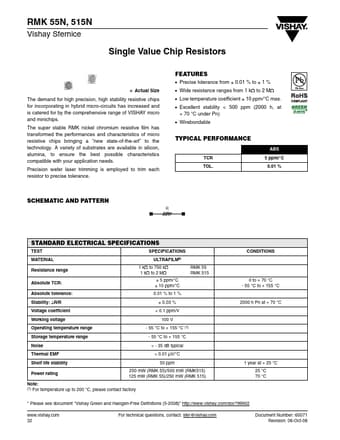

RMK515N Datasheet Preview — Preview of RMK515N PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	RMK515N
Manufacturer	Vishay
File Size	146.47 KB
Description	Single Value Chip Resistors
Datasheet	RMK515N_Vishay.pdf

RMK515N Product details

Features

Precise tolerance from ± 0.01 % to ± 1 % Actual Size.
Wide resistance ranges from 1 kΩ to 2 MΩ.
Low temperature coefficient ± 10 ppm/°C max.
Excellent stability < 500 ppm (2000 h, at + 70 °C under Pn).
Wirebondable The demand for high precision, high stability resistive chips for incorporating in hybrid micro-circuits has increased and is catered for by the comprehensive range of VISHAY micro and minichips. The super stable RMK nickel chromium res.
