RTE12 - Wirewound Rheostat/Potentiometer

RTE12 Description

Wirewound Rheostat/Potentiometer RT12, RTE12 Vishay Sfernice .

RTE12 Features

* 12 Watt at 25°C
* CCTU 05-03B (PA9)
* Vitreous RT12 and Laquered RTE12 styles DIMENSIONS in millimeters RT12-PA9 22 ,5 + 1, 5 17 2 M6 x 0, 75 -0 3 - 0,05 PANEL CUT OUT DETAILS Ø 3.5 15, 5 1, 1 MIN 70 18 + 2 9 +1 1 12, 5 + 2 ACF 22 + 2 AS MOUNTING SIDE Ø 6.5

📥 Download Datasheet

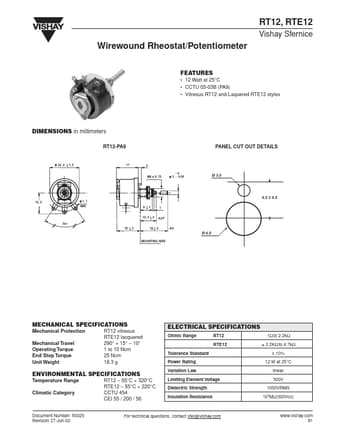

Preview of RTE12 PDF
datasheet Preview Page 2

Datasheet Details

Part number
RTE12
Manufacturer
Vishay ↗
File Size
121.19 KB
Datasheet
RTE12-Vishay.pdf
Description
Wirewound Rheostat/Potentiometer
