Surface mount glass passivated rectifier.

S1A-M3, Surface Mount Glass Passivated Rectifier

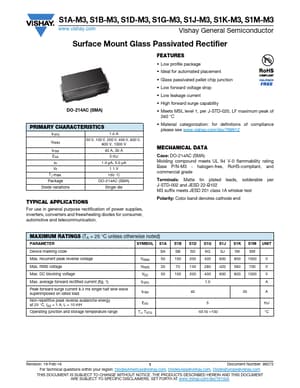

S1A-M3, S1B-M3, S1D-M3, S1G-M3, S1J-M3, S1K-M3, S1M-M3 www.vishay.com Vishay General Semiconductor Surface Mount Glass Passivated Rectifier DO-214AC (SMA) PRIMARY CHARACTERISTICS IF(AV) VRRM 1.0 A 50 V, 100 V, 200 V, 400 V, 600 V, 800 V, 1000 V IFSM EAS IR VF TJ max.

Package 40 A, 30 A 5 mJ 1.0 μA, 5.0 μA 1.1 V 150 °C DO-214AC (SMA) Diode variations Single die TYPICAL APPLICATIONS For use in general purpose rectification of power supplies, inverters, converters and freewheeling diode

S1A-M3 Features

* Low profile package

* Ideal for automated placement

* Glass passivated pellet chip junction

* Low forward voltage drop

* Low leakage current

* High forward surge capability

* Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C
