S5G Surface Mount Glass Passivated Rectifier

S5G Description

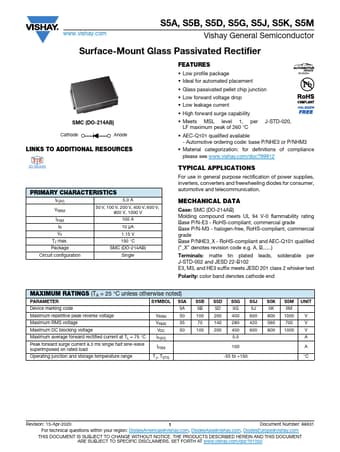

www.vishay.com S5A, S5B, S5D, S5G, S5J, S5K, S5M Vishay General Semiconductor Surface-Mount Glass Passivated Rectifier SMC (DO-214AB) Cathode Ano.

S5G Features

* Low profile package Available
* Ideal for automated placement
* Glass passivated pellet chip junction
* Low forward voltage drop
* Low leakage current
* High forward surge capability
* Meets MSL level 1, per J-STD-020, LF maximum peak

S5G Applications

* For use in general purpose rectification of power supplies, inverters, converters and freewheeling diodes for consumer, automotive and telecommunication. MECHANICAL DATA Case: SMC (DO-214AB) Molding compound meets UL 94 V-0 flammability rating Base P/N-E3 - RoHS-compliant, commercial grade Base P/N
