S5MS-M3 - SMD Photovoltaic Solar Cell Protection Rectifier

S5MS-M3 Description

www.vishay.com S5MS-M3 Vishay General Semiconductor SMD Photovoltaic Solar Cell Protection Rectifier DO-214AB (SMC) .

S5MS-M3 Features

* Low profile package
* Ideal for automated placement
* Glass passivated pellet chip junction
* Low forward voltage drop
* Low leakage current
* High forward surge capability
* Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C

S5MS-M3 Applications

* For use in solar cell panel blocking diode for protection, using DC forward current without reverse bias. MECHANICAL DATA Case: DO-214AB (SMC) Molding compound meets UL 94 V-0 flammability rating Base P/N-M3 - RoHS-compliant, commercial grade Terminals: Matte tin plated leads, solderable per J-STD

📥 Download Datasheet

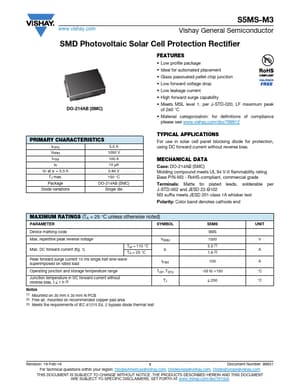

Preview of S5MS-M3 PDF
