SAC8.0, SAC5.0 Transient Voltage Suppressors

SAC8.0 Description

www.vishay.com SAC5.0 thru SAC50 Vishay General Semiconductor Low Capacitance TRANSZORB® Transient Voltage Suppressors DO-15 (DO-204AC) .

SAC8.0 Features

* Glass passivated chip junction
* 500 W peak pulse power capability with a 10/1000 μs waveform, repetitive rate (duty cycle): 0.01 %
* Excellent clamping capability
* Very fast response time
* Low incremental surge resistance
* Solder dip 275 °C max.

SAC8.0 Applications

* Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, and telecommunication. MECHANICAL DATA Case: DO-15 (DO-204AC) Molded epoxy over passivated bod

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SAC8.0, SAC5.0. Please refer to the document for exact specifications by model.

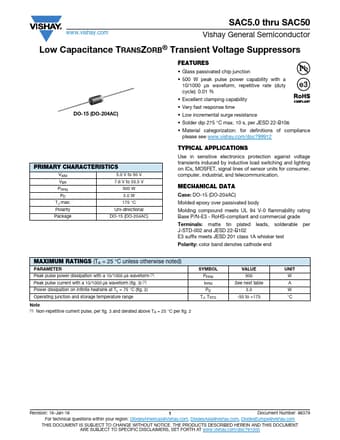

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SAC8.0, SAC5.0
Manufacturer
Vishay ↗
File Size
76.78 KB
Datasheet
SAC5.0-Vishay.pdf
Description
Transient Voltage Suppressors
Note
This datasheet PDF includes multiple part numbers: SAC8.0, SAC5.0.
Please refer to the document for exact specifications by model.
