SB050, SB020 Miniature Schottky Barrier Rectifier

SB050 Description

SB020 thru SB060 Vishay General Semiconductor Miniature Schottky Barrier Rectifier MPG06 PRIMARY CHARACTERISTICS IF(AV) 0.6 A VRRM 20 V to 60 V .

SB050 Features

* Guardring for overvoltage protection
* Very small conduction losses
* Extremely fast switching
* Low forward voltage drop
* High frequency operation
* Solder dip 275 °C max. 10 s, per JESD 22-B106
* Compliant to RoHS directive 2002/95/EC and

SB050 Applications

* For use in low voltage high frequency inverters, freewheeling, dc-to-dc converters, and polarity protection applications. MECHANICAL DATA Case: MPG06 Molding compound meets UL 94 V-0 flammability rating Base P/N-E3 - RoHS compliant, commercial grade Terminals: Matte tin plated leads, solderable per

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SB050, SB020. Please refer to the document for exact specifications by model.

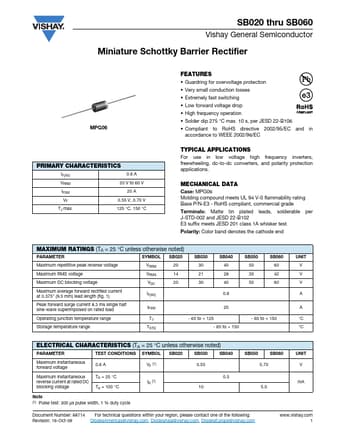

datasheet Preview Page 2 datasheet Preview Page 3
