SBL3040PT, SBL3030PT Dual Common Cathode Schottky Rectifier

SBL3040PT Description

www.vishay.com SBL3030PT, SBL3040PT Vishay General Semiconductor Dual Common Cathode Schottky Rectifier 3 2 1 TO-3P (TO-247AD) PIN 1 PIN 3 PIN 2 .

SBL3040PT Features

* Power pack
* Guardring for overvoltage protection
* Lower power losses, high efficiency
* Low forward voltage drop
* High forward surge capability
* High frequency operation
* Solder dip 275 °C max. 10 s, per JESD 22-B106
* Material c

SBL3040PT Applications

* For use in low voltage, high frequency rectifier of switching mode power supplies, freewheeling diodes, DC/DC converters, or polarity protection application. MECHANICAL DATA Case: TO-3P (TO-247AD) Molding compound meets UL 94 V-0 flammability rating Base P/N-E3 - RoHS-compliant, commercial grade Ter

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SBL3040PT, SBL3030PT. Please refer to the document for exact specifications by model.

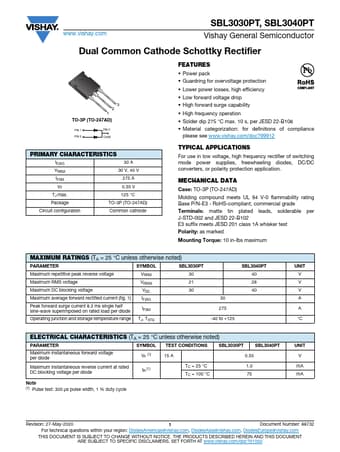

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SBL3040PT, SBL3030PT
Manufacturer
Vishay ↗
File Size
78.94 KB
Datasheet
SBL3030PT-Vishay.pdf
Description
Dual Common Cathode Schottky Rectifier
Note
This datasheet PDF includes multiple part numbers: SBL3040PT, SBL3030PT.
Please refer to the document for exact specifications by model.
