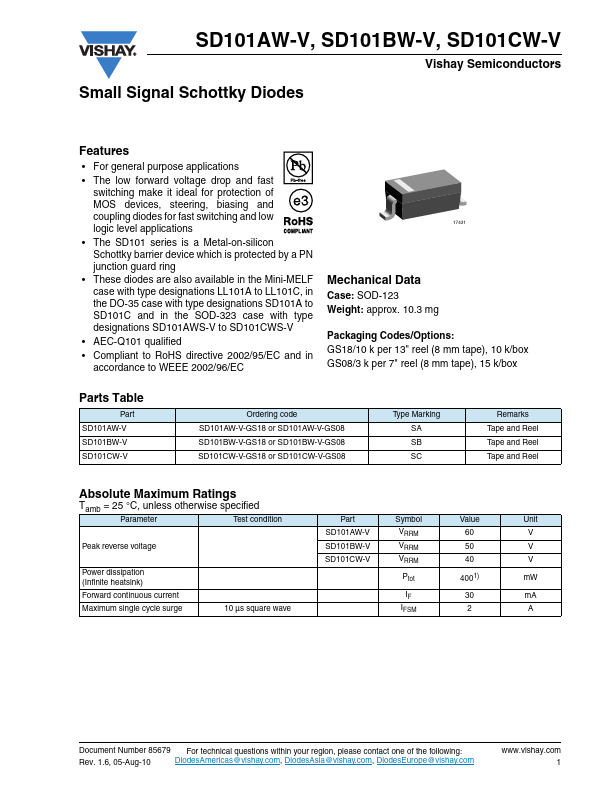

SD101AW-V Datasheet | Vishay

Features - For general purpose applications - The low forward voltage drop and fast switching make it ideal for protection of MOS devices, steering, biasing and coupling diodes for fast switching and low logic level applications - The SD101 series is a Metal-on-silicon Schottky barrier device which is protected by a PN junction guard ring - These diodes are also available in the Mini-MELF case with type designations LL101A to LL101C, in the DO-35 case with type designations SD101A to SD101C and in the SOD-323 case with type designations SD101AWS-V to SD101CWS-V - AEC-Q101 qualified - pliant to Ro HS directive 2002/95/EC and in accordance to WEEE 2002/96/EC Mechanical Data Case: SOD-123 Weight: approx. 10.3 mg Packaging Codes/Options: GS18/10 k per 13" reel (8 mm tape), 10 k/box GS08/3 k per 7" reel (8 mm tape), 15 k/box Parts Table Part SD101AW-V SD101BW-V SD101CW-V Ordering code SD101AW-V-GS18 or SD101AW-V-GS08 SD101BW-V-GS18 or SD101BW-V-GS08 SD101CW-V-GS18 or...
