SFH600-2X007 - Optocoupler

Product Overview

Vishay

📥 Download Datasheet

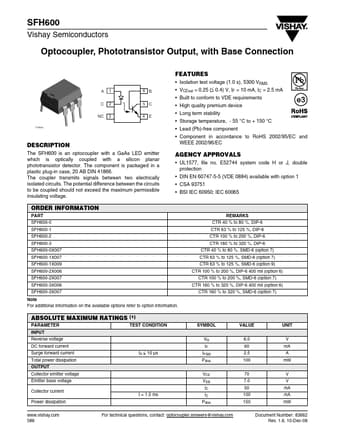

SFH600-2X007 Optocoupler by Vishay - Datasheet Preview — Datasheet preview – SFH600-2X007

Datasheet Details

Part number	SFH600-2X007
Manufacturer	Vishay
File Size	159.50 KB
Description	Optocoupler
Datasheet	SFH600-2X007 Datasheet
Note	This datasheet PDF includes multiple part numbers: SFH600-2X007, SFH600. Please refer to the document for exact specifications by model.
Additional preview pages of the SFH600-2X007 datasheet.

Product details

Description

The SFH600 is an optocoupler with a GaAs LED emitter which is optically coupled with a silicon planar phototransistor detector.

Features

Isolation test voltage (1.0 s), 5300 VRMS.
VCEsat = 0.25 (≤ 0.4) V, IF = 10 mA, IC = 2.5 mA.
Built to conform to VDE requirements.
High quality premium device.
Long term stability.
Storage temperature, - 55 °C to + 150 °C.
Lead (Pb)-free component.
Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC AGENCY.
