SFH615A-3X018T - Optocoupler

SFH615A-3X018T Description

www.vishay.com SFH615A-3X018T Vishay Semiconductors Optocoupler, Phototransistor Output, High Reliability, 5300 VRMS A1 C2 4C 3E 17448-5 1 DESC.
The SFH615A-3X018T features a variety of transfer ratios, low coupling capacitance and high isolation voltage.

SFH615A-3X018T Features

* a variety of transfer ratios, low coupling capacitance and high isolation voltage. This coupler has a GaAs infrared diode emitter, which is optically coupled to a silicon planar phototransistor detector, and is incorporated in a plastic SMD package. The coupling devices are designed for signal trans

SFH615A-3X018T Applications

* Switchmode power supply
* Telecom
* Battery powered equipment AGENCY APPROVALS
* UL1577, file no. E52744 system code H or J, double protection
* DIN EN 60747-5-5 (VDE 0884-5) available with option 1
* cUL tested to CSA 22.2 bulletin 5A
* BSI

📥 Download Datasheet

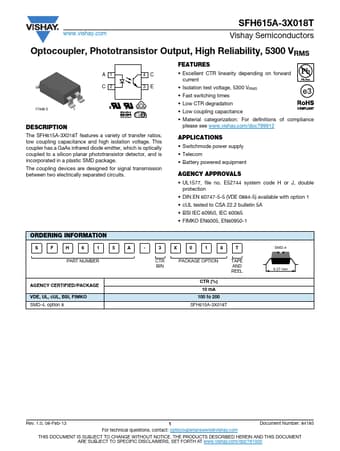

Preview of SFH615A-3X018T PDF
datasheet Preview Page 2 datasheet Preview Page 3
