SIA446DJ N-Channel 150 V (D-S) MOSFET

📥 Download Datasheet Datasheet Preview Page 1

Description

SiA446DJ www.vishay.com Vishay Siliconix N-Channel 150 V (D-S) MOSFET PRODUCT SUMMARY VDS (V) 150 RDS(on) () MAX.0.177 at VGS = 10 V 0.185 at VGS .

📥 Download Datasheet

Preview of SIA446DJ PDF

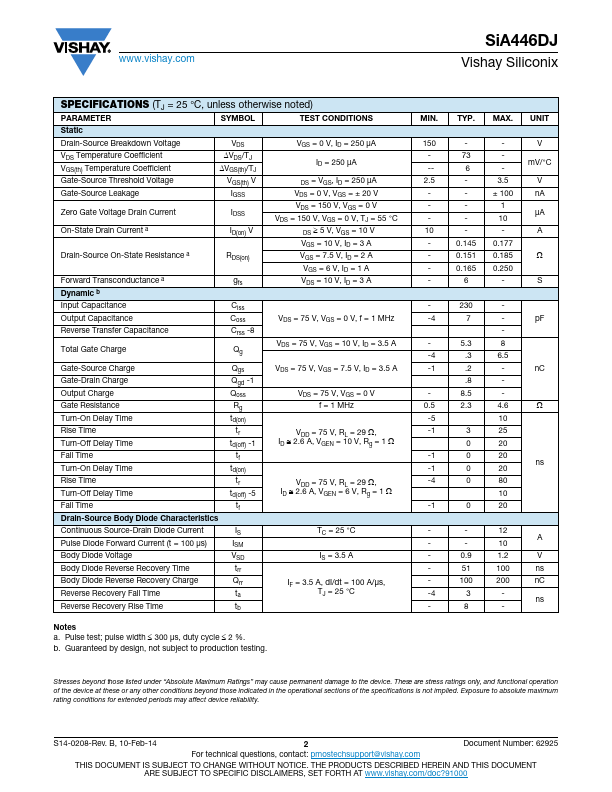

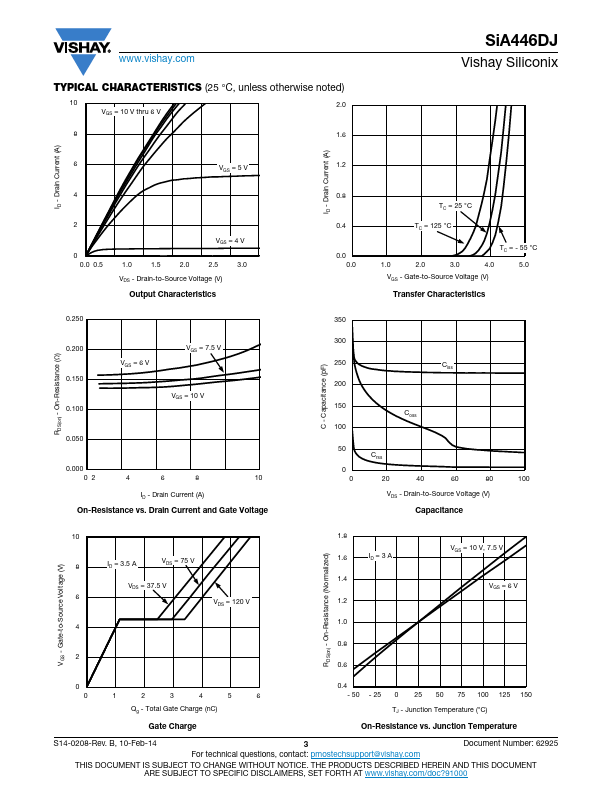

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
SIA446DJ
Manufacturer
Vishay ↗
File Size
335.39 KB
Datasheet
SIA446DJ-Vishay.pdf
Description
N-Channel 150 V (D-S) MOSFET

Features

* ThunderFET® technology optimizes balance of RDS(on), Qg, Qsw and Qoss
* 100 % Rg and UIS tested

Applications

* DC/DC converters / boost converters
* Synchronous rectification
* Power management 2 D 1 D D S
* LED backlighting G Marking Code: AV Ordering Information: SiA446DJ-T1-GE3 (Lead (Pb)-free and Halogen-free) ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise
