SIS330DN N-Channel 30V MOSFET

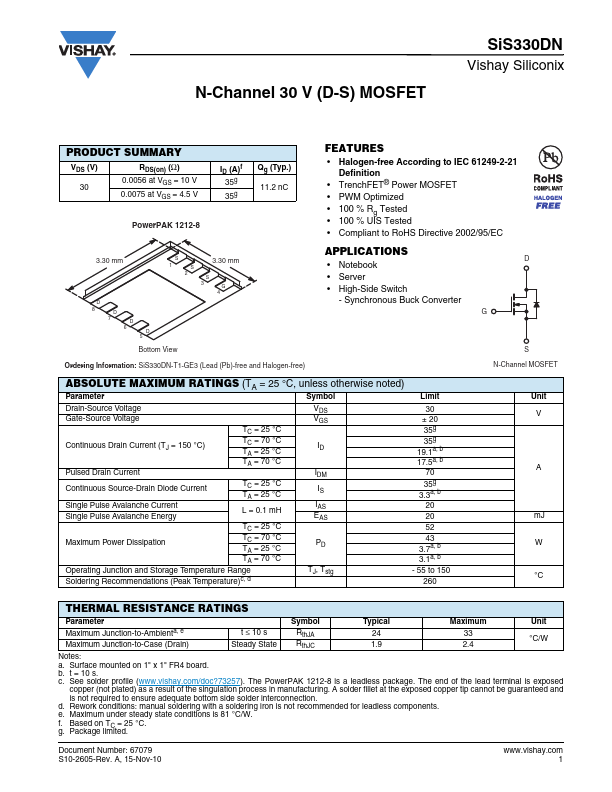

📥 Download Datasheet  Datasheet Preview Page 1

Description

N-Channel 30 V (D-S) MOSFET SiS330DN Vishay Siliconix PRODUCT SUMMARY VDS (V) 30 RDS(on) (Ω) 0.0056 at VGS = 10 V 0.0075 at VGS = 4.5 V ID (A)f 3.

📥 Download Datasheet

Preview of SIS330DN PDF

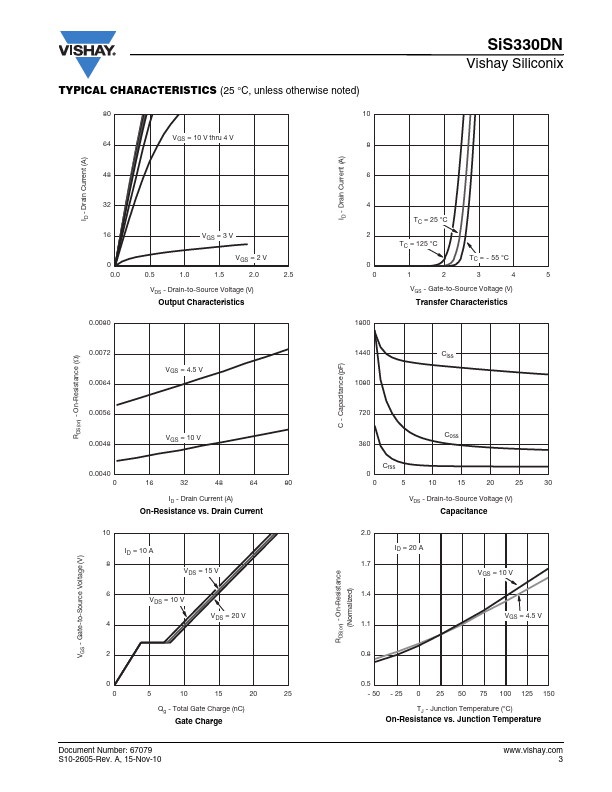

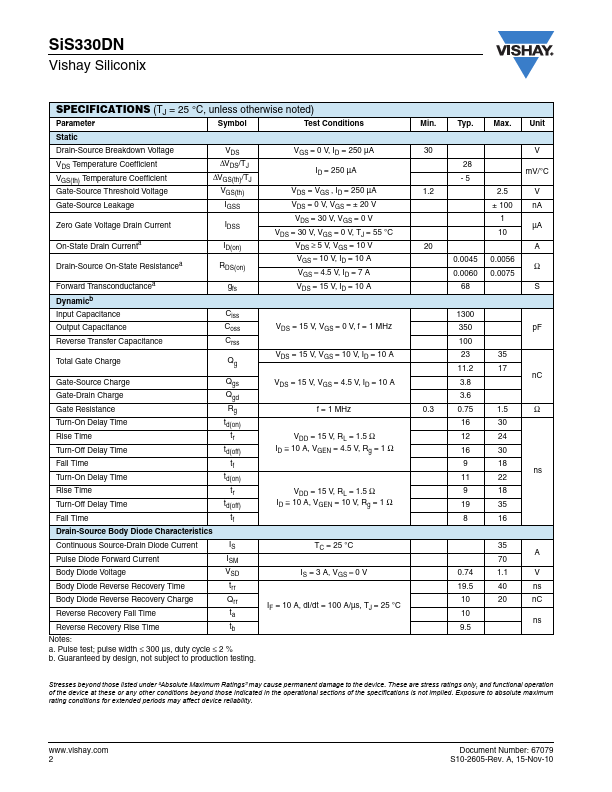

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
SIS330DN
Manufacturer
Vishay ↗
File Size
1.12 MB
Datasheet
SIS330DN-Vishay.pdf
Description
N-Channel 30V MOSFET

Features

* Halogen-free According to IEC 61249-2-21 Definition
* TrenchFET® Power MOSFET
* PWM Optimized
* 100 % Rg Tested
* 100 % UIS Tested
* Compliant to RoHS Directive 2002/95/EC 3.30 mm D 8 D 7 D 6 D 5 S 1 S 3.30 mm 2 S 3 G 4 Bottom View Ord

Applications

* Notebook
* Server
* High-Side Switch - Synchronous Buck Converter D G S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) Parameter Symbol Limit Unit Drain-Source Voltage Gate-Source Voltage VDS 30 V VGS ± 20 TC = 25 °C 35g Contin
