SM8S14A - Transient Voltage Suppressors

Product Overview

Vishay

Part number	SM8S14A
Manufacturer	Vishay
File Size	174.96 KB
Description	Transient Voltage Suppressors
Datasheet	SM8S14A Datasheet
Note	This datasheet PDF includes multiple part numbers: SM8S14A, SM8S10. Please refer to the document for exact specifications by model.

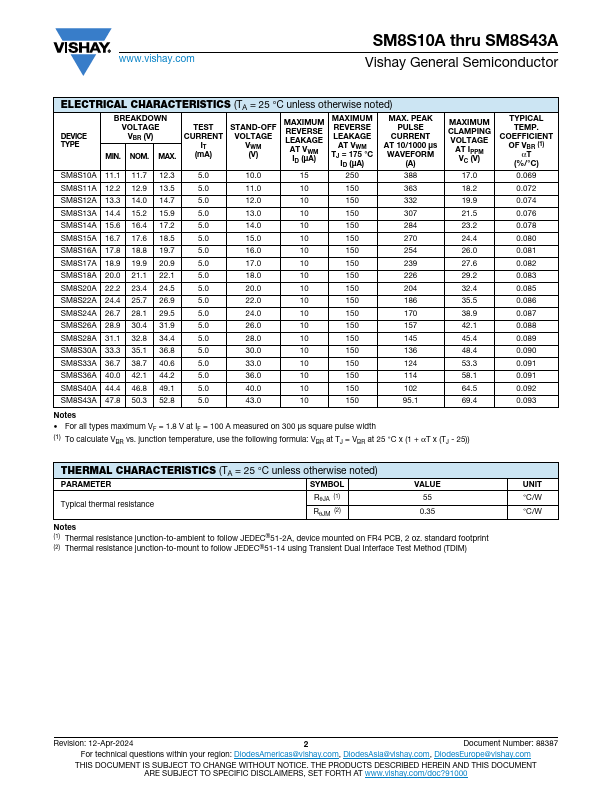

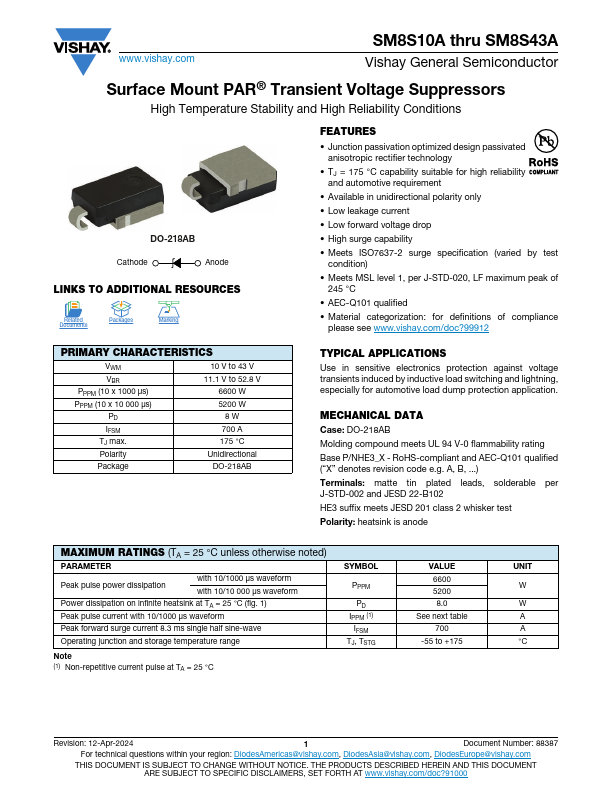

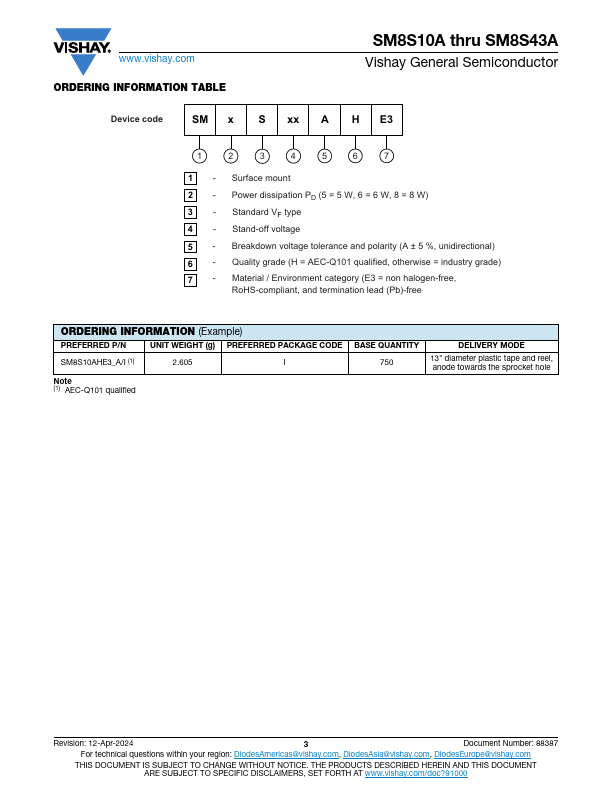

Additional preview pages of the SM8S14A datasheet.

Junction passivation optimized design passivated anisotropic rectifier technology.
TJ = 175 °C capability suitable for high reliability and automotive requirement.
Available in unidirectional polarity only.
Low leakage current.
Low forward voltage drop.
High surge capability.
Meets ISO7637-2 surge specification (varied by test condition).
Meets MSL level 1, per J-STD-020, LF maximum peak of 245 °C.
AEC-Q101 qualifi.
