SM8S17CA - Transient Voltage Suppressors

Product Overview

Vishay

Part number	SM8S17CA
Manufacturer	Vishay
File Size	144.80 KB
Description	Transient Voltage Suppressors
Datasheet	SM8S17CA Datasheet
Note	This datasheet PDF includes multiple part numbers: SM8S17CA, SM8S10CA. Please refer to the document for exact specifications by model.

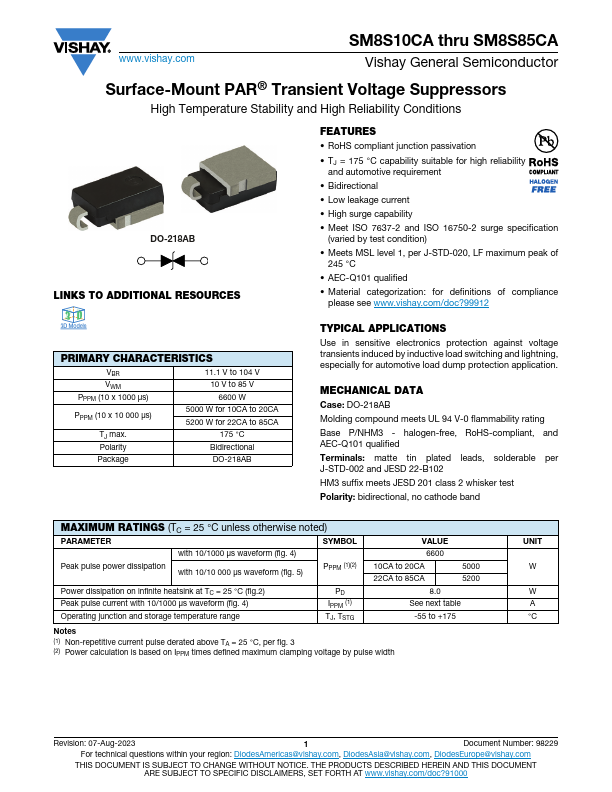

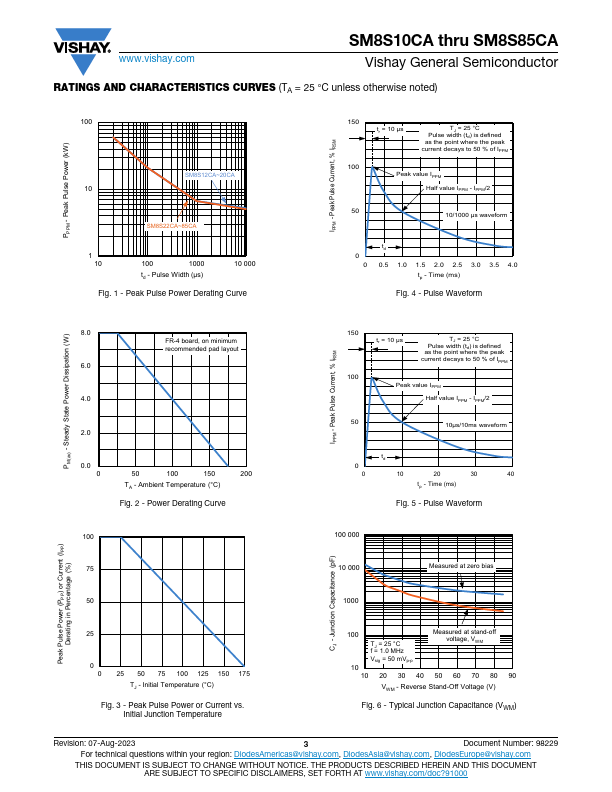

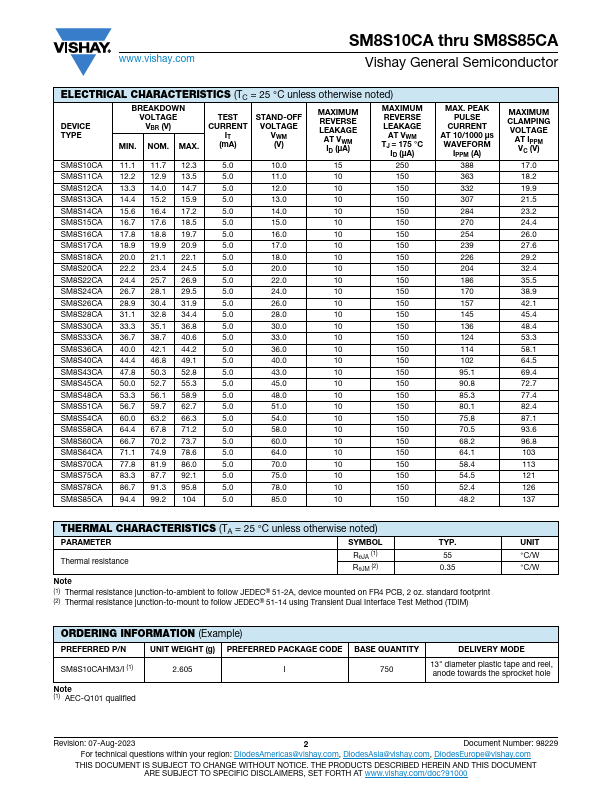

Additional preview pages of the SM8S17CA datasheet.

RoHS compliant junction passivation.
TJ = 175 °C capability suitable for high reliability and automotive requirement.
Bidirectional.
Low leakage current.
High surge capability.
Meet ISO 7637-2 and ISO 16750-2 surge specification (varied by test condition).
Meets MSL level 1, per J-STD-020, LF maximum peak of 245 °C.
AEC-Q101 qualified.
Material categorization: for definitions of compliance please see www. vishay. com.
