SM8S30 - Transient Voltage Suppressors

Product Overview

Vishay

📥 Download Datasheet

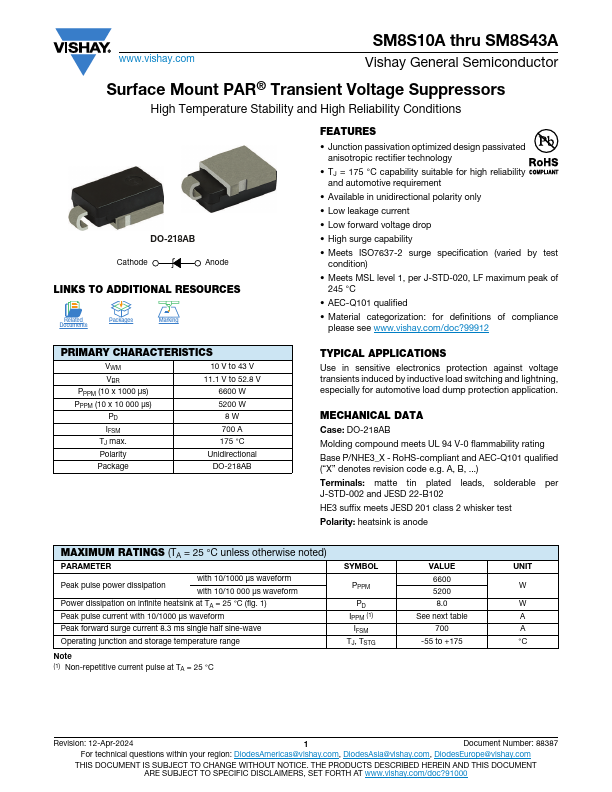

SM8S30 Transient Voltage Suppressors by Vishay - Datasheet Preview — Datasheet preview – SM8S30

Datasheet Details

Part number	SM8S30
Manufacturer	Vishay
File Size	174.96 KB
Description	Transient Voltage Suppressors
Datasheet	SM8S30 Datasheet
Note	This datasheet PDF includes multiple part numbers: SM8S30, SM8S10. Please refer to the document for exact specifications by model.

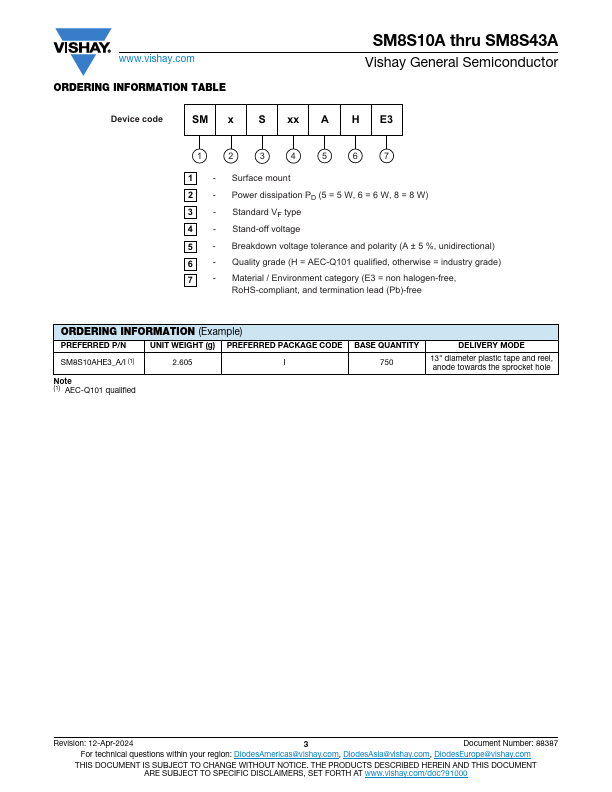

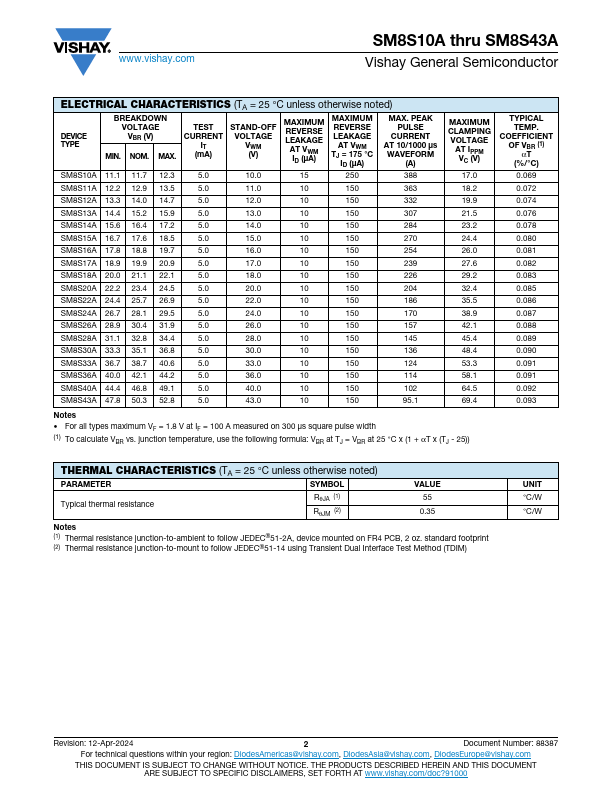

Additional preview pages of the SM8S30 datasheet.

Product details

Features

Junction passivation optimized design passivated anisotropic rectifier technology.
TJ = 175 °C capability suitable for high reliability and automotive requirement.
Available in unidirectional polarity only.
Low leakage current.
Low forward voltage drop.
High surge capability.
Meets ISO7637-2 surge specification (varied by test condition).
Meets MSL level 1, per J-STD-020, LF maximum peak of 245 °C.
AEC-Q101 qualifi.
