SM8S40, SM8S10, Transient Voltage Suppressors

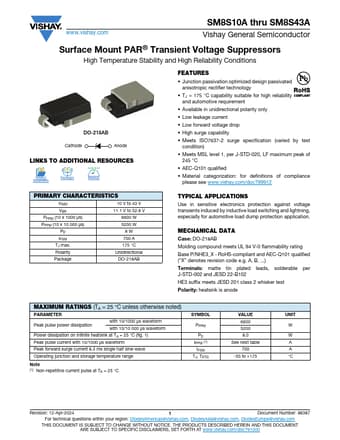

www.vishay.com SM8S10A thru SM8S43A Vishay General Semiconductor Surface Mount PAR® Transient Voltage Suppressors High Temperature Stability and Hig.

datasheet Preview Page 1 from Datasheet4u.com

SM8S10-Vishay.pdf

SM8S40 Datasheet Preview — This datasheet PDF includes multiple part numbers: SM8S40, SM8S10. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SM8S40, SM8S10

Manufacturer:

Vishay ↗

File Size:

174.96 KB

Description:

Transient Voltage Suppressors

Note:

This datasheet PDF includes multiple part numbers: SM8S40, SM8S10.
Please refer to the document for exact specifications by model.

Features

* Junction passivation optimized design passivated anisotropic rectifier technology
* TJ = 175 °C capability suitable for high reliability and automotive requirement
* Available in unidirectional polarity only
* Low leakage current
* Low forward voltage drop

Applications

* Use in sensitive electronics protection against voltage transients induced by inductive load switching and lightning, especially for automotive load dump protection application. MECHANICAL DATA Case: DO-218AB Molding compound meets UL 94 V-0 flammability rating Base P/NHE3_X - RoHS-compliant and AEC
