SMAJ8.0A, SMAJ5.0A Transient Voltage Suppressors

SMAJ8.0A Description

www.vishay.com SMAJ5.0A thru SMAJ188CA Vishay General Semiconductor Surface-Mount TRANSZORB® Transient Voltage Suppressors Cathode SMA (DO-214AC) .

SMAJ8.0A Features

* Low profile package Available
* Ideal for automated placement
* Glass passivated chip junction
* Available in unidirectional and bidirectional
* 400 W peak pulse power capability with a 10/1000 μs waveform, repetitive rate (duty cycle): 0.01 % (300 W a

SMAJ8.0A Applications

* For bidirectional use CA suffix (e. g. SMAJ10CA). Electrical characteristics apply in both directions. TYPICAL APPLICATIONS Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for consumer, co

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SMAJ8.0A, SMAJ5.0A. Please refer to the document for exact specifications by model.

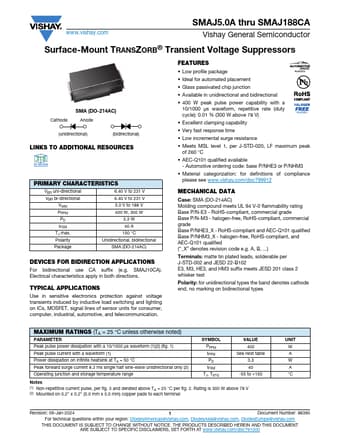

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SMAJ8.0A, SMAJ5.0A
Manufacturer
Vishay ↗
File Size
108.62 KB
Datasheet
SMAJ5.0A-Vishay.pdf
Description
Transient Voltage Suppressors
Note
This datasheet PDF includes multiple part numbers: SMAJ8.0A, SMAJ5.0A.
Please refer to the document for exact specifications by model.
