SMBG78 Transient Voltage Suppressors

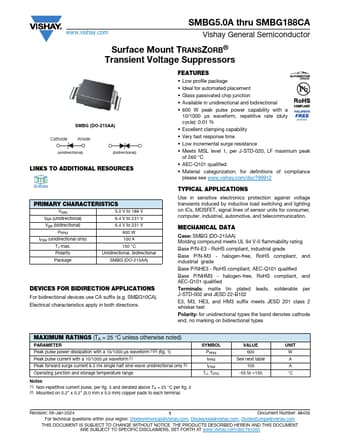

www.vishay.com SMBG5.0A thru SMBG188CA Vishay General Semiconductor Surface Mount TRANSZORB® Transient Voltage Suppressors SMBG (DO-215AA) Cathode Anode (unidirectional) (bidirectional) LINKS TO ADDITIONAL RESOURCES 3D 3D 3D Models PRIMARY CHARACTERISTICS VWM VBR (unidirectional) VBR (bidirectional) PPPM IFSM (unidirectional only) TJ max. Polarity 5.0 V to 188 V 6.4 V to 231 V 6.4 V to 231 V 600 W 100 A 150 °C Unidirectional, bidirectional Package SMBG (DO-215AA) DEVICES FOR BIDIRECT.

SMBG78 Features

* Low profile package

* Ideal for automated placement

* Glass passivated chip junction

* Available in unidirectional and bidirectional

* 600 W peak pulse power capability with a 10/1000 μs waveform, repetitive rate (duty cycle): 0.01 % Available

SMBG78 Datasheet (106.98 KB)
