SMC3K78CA, SMC3K22CA Surface Mount TRANSZORB Transient Voltage Suppressors

SMC3K78CA Description

New Product SMC3K22CA thru SMC3K78CA Vishay General Semiconductor Surface Mount TRANSZORB® Transient Voltage Suppressors .

SMC3K78CA Features

* Available in bi-directional polarity only
* 3000 W peak pulse power capability with a (10/1000 μs) waveform
* Excellent clamping capability
* Very fast response time
* Low incremental surge resistance
* Meets MSL level 1, per J-STD-020, LF maximum pe

SMC3K78CA Applications

* Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, automotive and telecommunication. Terminals: Matte tin plated leads, solderable per J-STD-002 and JESD

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SMC3K78CA, SMC3K22CA. Please refer to the document for exact specifications by model.

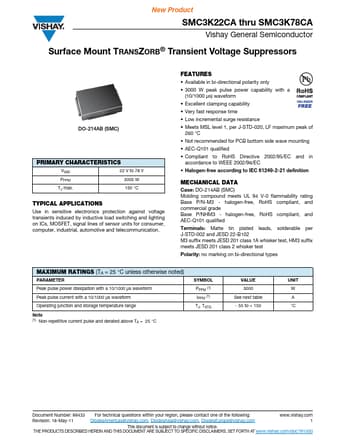

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SMC3K78CA, SMC3K22CA
Manufacturer
Vishay ↗
File Size
148.35 KB
Datasheet
SMC3K22CA_Vishay.pdf
Description
Surface Mount TRANSZORB Transient Voltage Suppressors
Note
This datasheet PDF includes multiple part numbers: SMC3K78CA, SMC3K22CA.
Please refer to the document for exact specifications by model.
