SMC5K26A, SMC5K10A Transient Voltage Suppressors

Vishay

Description

www.vishay.com SMC5K10A thru SMC5K85A Vishay General Semiconductor Surface Mount TRANSZORB® Transient Voltage Suppressors SMC (DO-214AB) Cathode .

📥 Download Datasheet

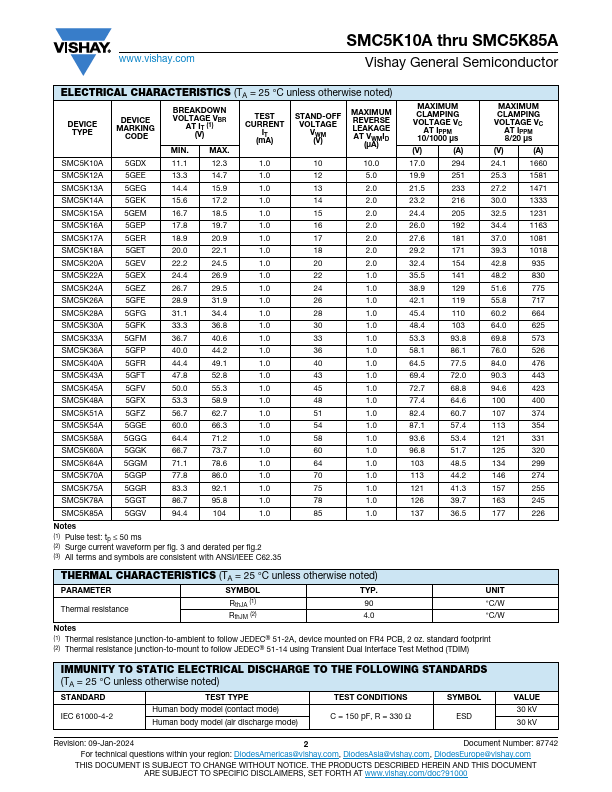

SMC5K26A Datasheet Preview — This datasheet PDF includes multiple part numbers: SMC5K26A, SMC5K10A. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: SMC5K26A, SMC5K10A
Manufacturer: Vishay ↗
File Size: 96.27 KB
Datasheet: SMC5K10A-Vishay.pdf
Description: Transient Voltage Suppressors
Note: This datasheet PDF includes multiple part numbers: SMC5K26A, SMC5K10A.
Please refer to the document for exact specifications by model.

Features

* Unidirectional
* Peak pulse power: - 5000 W (10/1000 μs) - 40 kW (8/20 μs)
* Excellent clamping capability
* Very fast response time
* Low incremental surge resistance
* Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C
* AEC-Q101 q

Applications

* Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, automotive, and telecommunication. MECHANICAL DATA Case: SMC (DO-214AB) Molding compound meets UL 94 V
