SMC5K48A, SMC5K10A - Transient Voltage Suppressors

Name: SMC5K48A
SKU: SMC5K48A-1371293

Vishay

The SMC5K48A by Vishay is a Transient Voltage Suppressors. Below is the official datasheet preview.

Datasheet Details

Part number	SMC5K48A, SMC5K10A
Manufacturer	Vishay
File Size	96.27 KB
Description	Transient Voltage Suppressors
Datasheet	SMC5K10A-Vishay.pdf
Note	This datasheet PDF includes multiple part numbers: SMC5K48A, SMC5K10A. Please refer to the document for exact specifications by model.

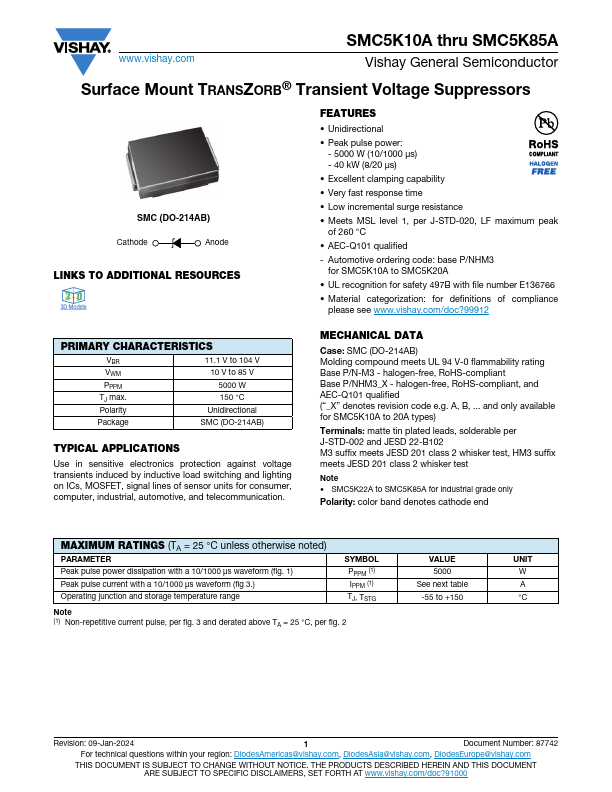

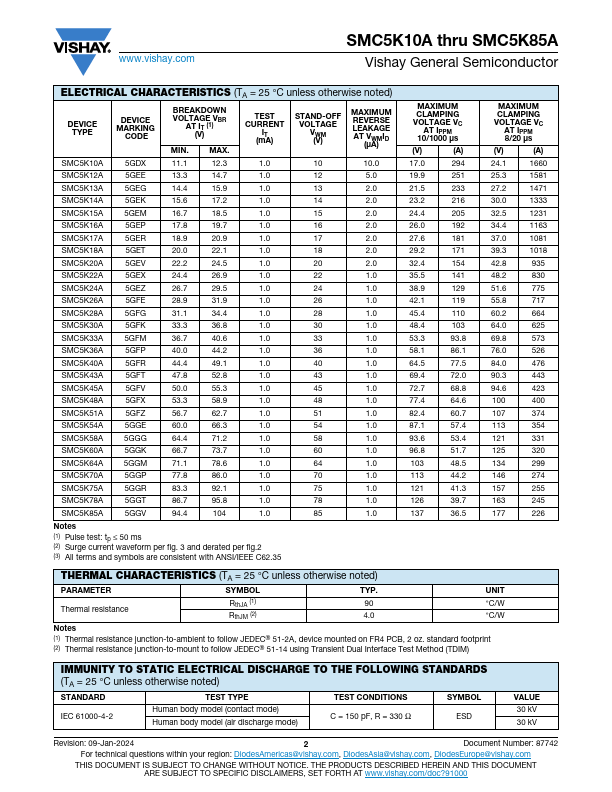

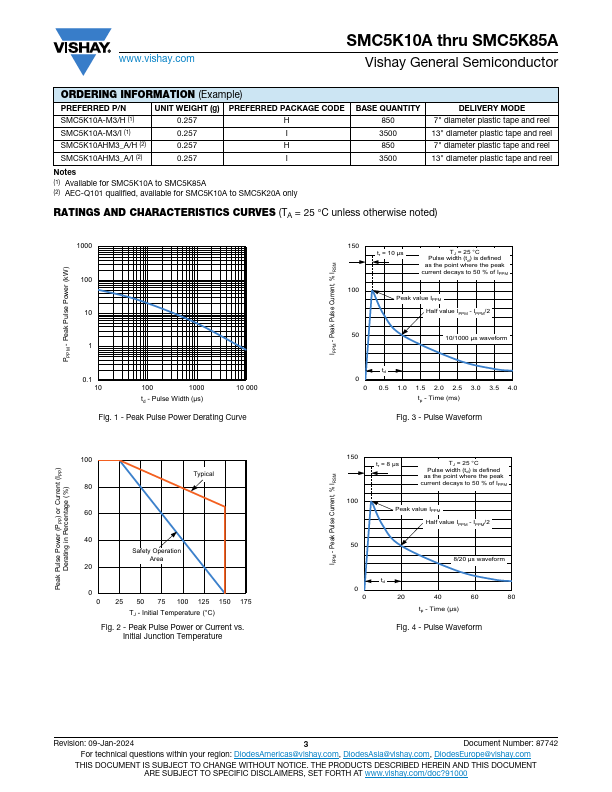

Additional preview pages of the SMC5K48A datasheet.

Unidirectional.
Peak pulse power: - 5000 W (10/1000 μs) - 40 kW (8/20 μs).
Excellent clamping capability.
Very fast response time.
Low incremental surge resistance.
Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C.
AEC-Q101 qualified - Automotive ordering code: base P/NHM3 for SMC5K10A to SMC5K20A.
UL recognition for safety 497B with file number E136766.
Material categorization: for definitions of compli.
