SMC5K85A, SMC5K10A Transient Voltage Suppressors

SMC5K85A Description

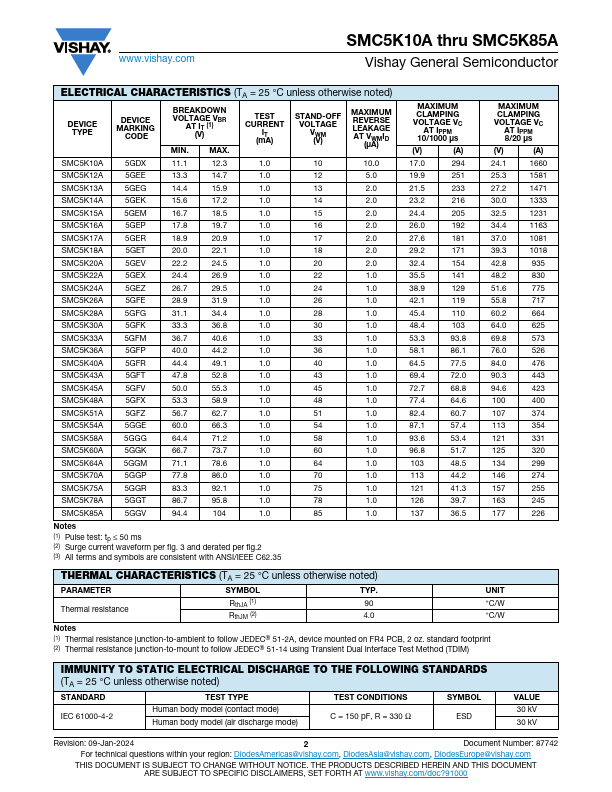

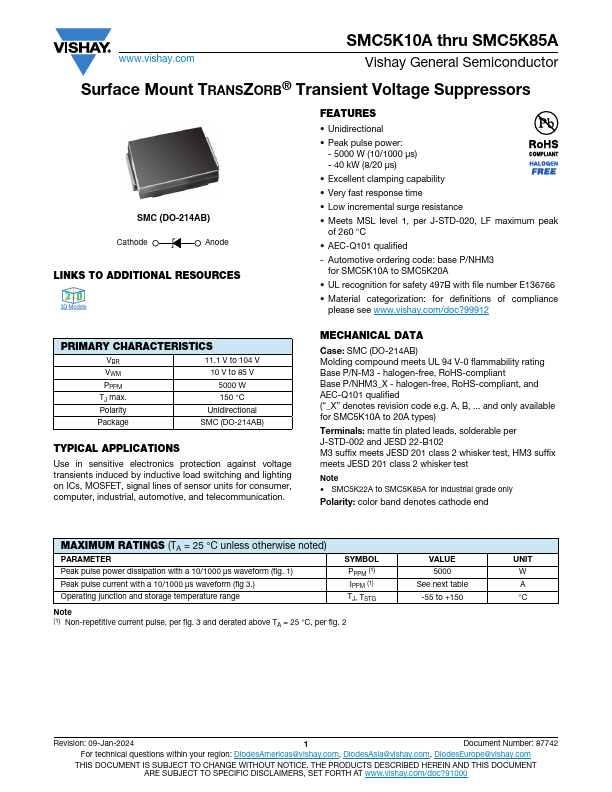

www.vishay.com SMC5K10A thru SMC5K85A Vishay General Semiconductor Surface Mount TRANSZORB® Transient Voltage Suppressors SMC (DO-214AB) Cathode .

SMC5K85A Features

* Unidirectional
* Peak pulse power: - 5000 W (10/1000 μs) - 40 kW (8/20 μs)
* Excellent clamping capability
* Very fast response time
* Low incremental surge resistance
* Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C
* AEC-Q101 q

SMC5K85A Applications

* Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, automotive, and telecommunication. MECHANICAL DATA Case: SMC (DO-214AB) Molding compound meets UL 94 V

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SMC5K85A, SMC5K10A. Please refer to the document for exact specifications by model.

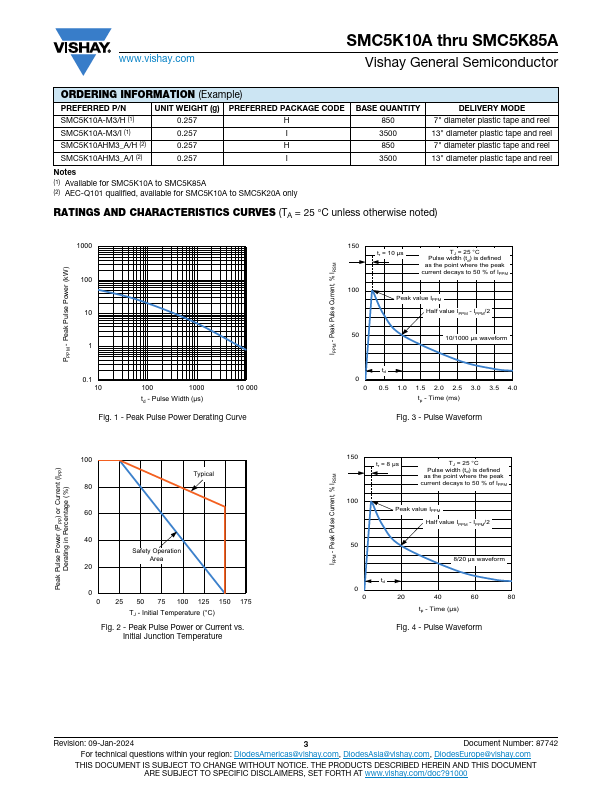

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SMC5K85A, SMC5K10A
Manufacturer
Vishay ↗
File Size
96.27 KB
Datasheet
SMC5K10A-Vishay.pdf
Description
Transient Voltage Suppressors
Note
This datasheet PDF includes multiple part numbers: SMC5K85A, SMC5K10A.
Please refer to the document for exact specifications by model.
