SMCJ45A, SMCJ5.0A Datasheet - Vishay

SMCJ45A TRANSZORB TVS

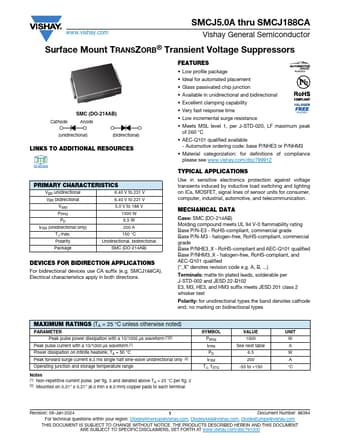

www.vishay.com SMCJ5.0A thru SMCJ188CA Vishay General Semiconductor Surface Mount TRANSZORB® Transient Voltage Suppressors Cathode SMC (DO-214AB) Anode (unidirectional) (bidirectional) LINKS TO ADDITIONAL RESOURCES 3D 3D 3D Models PRIMARY CHARACTERISTICS VBR unidirectional VBR bidirectional VWM PPPM PD IFSM (unidirectional only) TJ max. Polarity 6.40 V to 231 V 6.40 V to 231 V 5.0 V to 188 V 1500 W 6.5 W 200 A 150 °C Unidirectional, bidirectional Package SMC (DO-214AB) DEVICES FOR B.

SMCJ45A Features

* Low profile package Available

* Ideal for automated placement

* Glass passivated chip junction

* Available in unidirectional and bidirectional

* Excellent clamping capability

* Very fast response time

* Low incremental surge resistance

SMCJ5.0A-Vishay.pdf

This datasheet PDF includes multiple part numbers: SMCJ45A, SMCJ5.0A. Please refer to the document for exact specifications by model.
SMCJ45A Datasheet Preview Page 2 SMCJ45A Datasheet Preview Page 3

Datasheet Details

Part number:

SMCJ45A, SMCJ5.0A

Manufacturer:

Vishay ↗

File Size:

108.44 KB

Description:

Transzorb tvs.

Note:

This datasheet PDF includes multiple part numbers: SMCJ45A, SMCJ5.0A.
Please refer to the document for exact specifications by model.
