STPS30L60CW Schottky Rectifier

STPS30L60CW Description

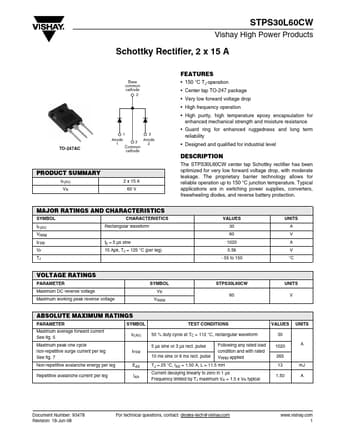

STPS30L60CW Vishay High Power Products Schottky Rectifier, 2 x 15 A Base common cathode 2 TO-247AC 13 Anode 1 2 Anode 2 Common cathode PRODUC.
The STPS30L60CW center tap Schottky rectifier has been optimized for very low forward voltage drop, with moderate leakage.

STPS30L60CW Features

* 150 °C TJ operation
* Center tap TO-247 package
* Very low forward voltage drop
* High frequency operation
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* Guard ring for enhanced ruggedne

STPS30L60CW Applications

* are in switching power supplies, converters, freewheeling diodes, and reverse battery protection. MAJOR RATINGS AND CHARACTERISTICS SYMBOL CHARACTERISTICS IF(AV) Rectangular waveform VRRM IFSM tp = 5 µs sine VF 15 Apk, TJ = 125 °C (per leg) TJ VALUES 30 60 1020 0.56 - 55 to 150 UNITS A V
