SUB70N04-10 Datasheet (Vishay)

SUB70N04-10, N-Channel MOSFET

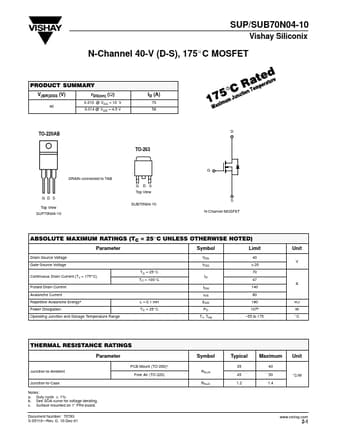

SUP/SUB70N04-10 Vishay Siliconix N-Channel 40-V (D-S), 175_C MOSFET PRODUCT SUMMARY V(BR)DSS (V) 40 rDS(on) (W) 0.010 @ VGS = 10 V 0.014 @ VGS = 4.5 V ID (A) 70 58 TO-220AB TO-263 DRAIN connected to TAB GDS Top View SUP70N04-10 G DS Top View SUB70N04-10 D G S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TC = 25_C UNLESS OTHERWISE NOTED) Parameter Symbol Limit Drain-Source Voltage Gate-Source Voltage Continuous Drain Current (TJ = 175_C) Pulsed Drain Current Avalanche Current Repetiti
