SUG90090E, N-Channel MOSFET

www.vishay.com SUG90090E Vishay Siliconix N-Channel 200 V (D-S) 175 °C MOSFET TO-247 Top View PRODUCT SUMMARY VDS (V) RDS(on) max.
(Ω) at VGS = 10

Features

* ThunderFET® power MOSFET
* Low RDS - Qg figure-of-merit (FOM)
* Maximum 175 °C junction temperature
* 100 % Rg and UIS tested

Applications

* Synchronous rectification
* Power supplies
* DC/AC inverter
* DC/DC converter
* Solar micro inverter
* Motor drive switch D G S N-Channel MOSFET ORDERING INFORMATION Package Lead (Pb)-free and halogen-free TO-247 SUG90090E-GE3 ABSOLUTE MAXIMUM RA

SUG90090E-Vishay.pdf

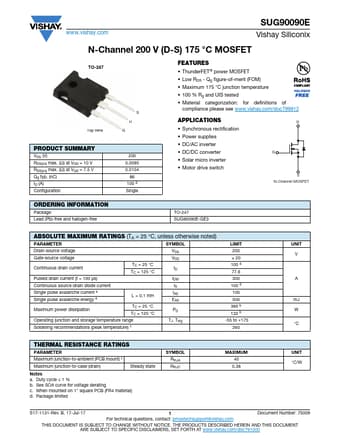

SUG90090E Datasheet Preview — Preview of SUG90090E PDF

Datasheet Details

Part number:

SUG90090E

Manufacturer:

Vishay ↗

File Size:

193.96 KB

Description:

N-channel mosfet.
