Description

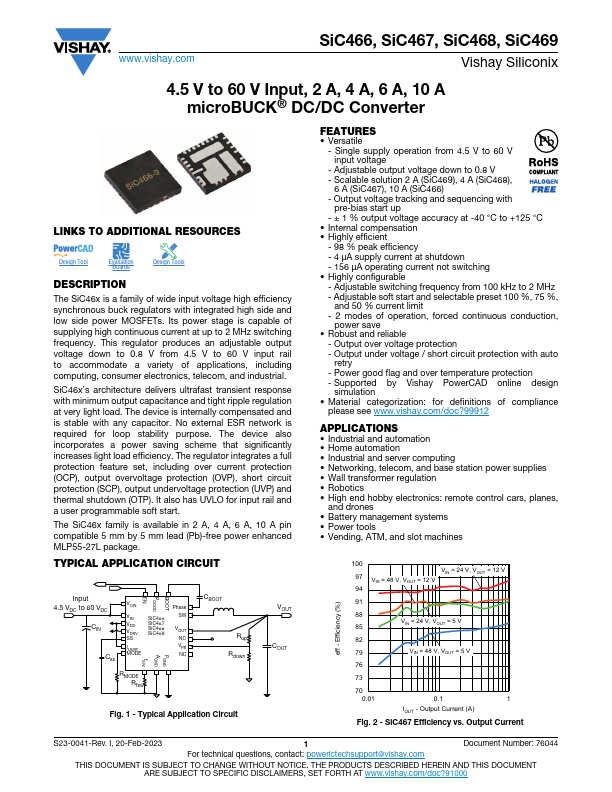

www.vishay.com SiC466, SiC467, SiC468, SiC469 Vishay Siliconix 4.5 V to 60 V Input, 2 A, 4 A, 6 A, 10 A microBUCK® DC/DC Converter LINKS TO ADDITIO.
The SiC46x is a family of wide input voltage high efficiency synchronous buck regulators with integrated high side and low side power MOSFETs.

📥 Download Datasheet

SiC469 Datasheet Preview — This datasheet PDF includes multiple part numbers: SiC469, SiC466. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: SiC469, SiC466
Manufacturer: Vishay ↗
File Size: 670.04 KB
Datasheet: SiC466-Vishay.pdf
Description: DC/DC Converter
Note: This datasheet PDF includes multiple part numbers: SiC469, SiC466.
Please refer to the document for exact specifications by model.

Features

* Versatile - Single supply operation from 4.5 V to 60 V input voltage - Adjustable output voltage down to 0.8 V - Scalable solution 2 A (SiC469), 4 A (SiC468), 6 A (SiC467), 10 A (SiC466) - Output voltage tracking and sequencing with pre-bias start up - ± 1 % output voltage accuracy at -40

Applications

* including computing, consumer electronics, telecom, and industrial. SiC46x’s architecture delivers ultrafast transient response with minimum output capacitance and tight ripple regulation at very light load. The device is internally compensated and is stable with any capacitor. No external ESR netw
