SiP32432DR, SiP32431DN - Load Switch

Vishay

Datasheet Details

Part number	SiP32432DR, SiP32431DN
Manufacturer	Vishay ↗
File Size	389.39 KB
Description	Load Switch
Datasheet	SiP32431DN-Vishay.pdf
Note	This datasheet PDF includes multiple part numbers: SiP32432DR, SiP32431DN. Please refer to the document for exact specifications by model.

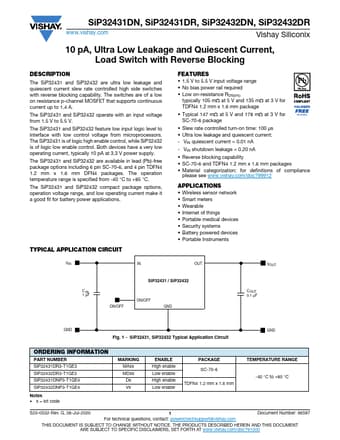

The SiP32431 and SiP32432 are ultra low leakage and quiescent current slew rate controlled high side switches with reverse blocking capability.

1.5 V to 5.5 V input voltage range.
No bias power rail required.
Low on-resistance RDS(on),  typically 105 m at 5 V and 135 m at 3 V for TDFN4 1.2 mm x 1.6 mm package.
Typical 147 m at 5 V and 178 m at 3 V for SC-70-6 package Available.
Slew rate controlled turn-on time: 100 μs.
Ultra low leakage and quiescent current: - VIN quiescent current = 0.01 nA - VIN shutdown leakage = 0.20 nA.
Reverse blocking capability.
S.
