SiSF04DN Dual N-Channel 30V MOSFET

Vishay

Description

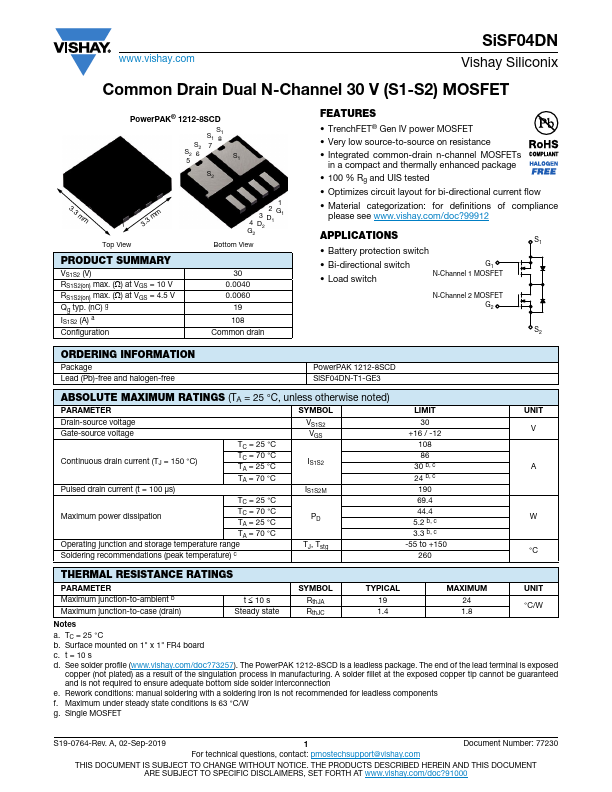

www.vishay.com SiSF04DN Vishay Siliconix Common Drain Dual N-Channel 30 V (S1-S2) MOSFET PowerPAK® 1212-8SCD S1 S1 8 S2 S2 6 7 5 S1 S2 3.3.

📥 Download Datasheet

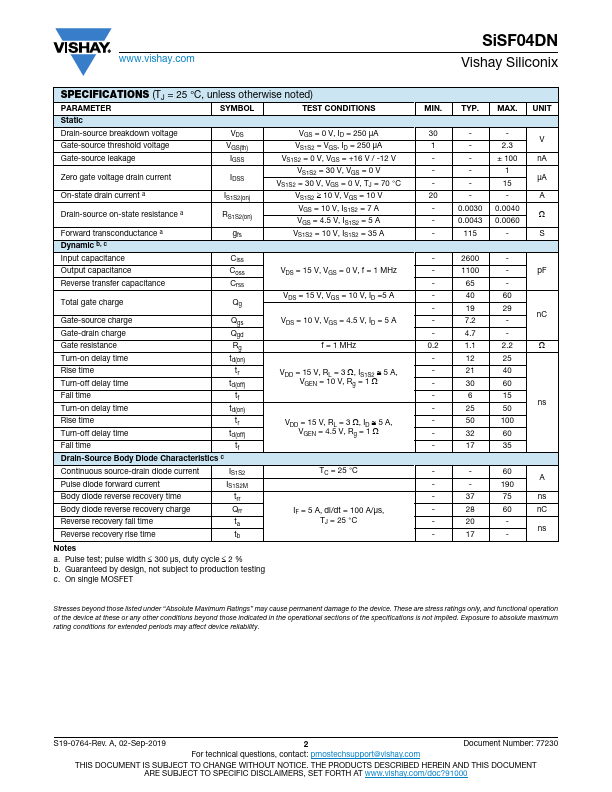

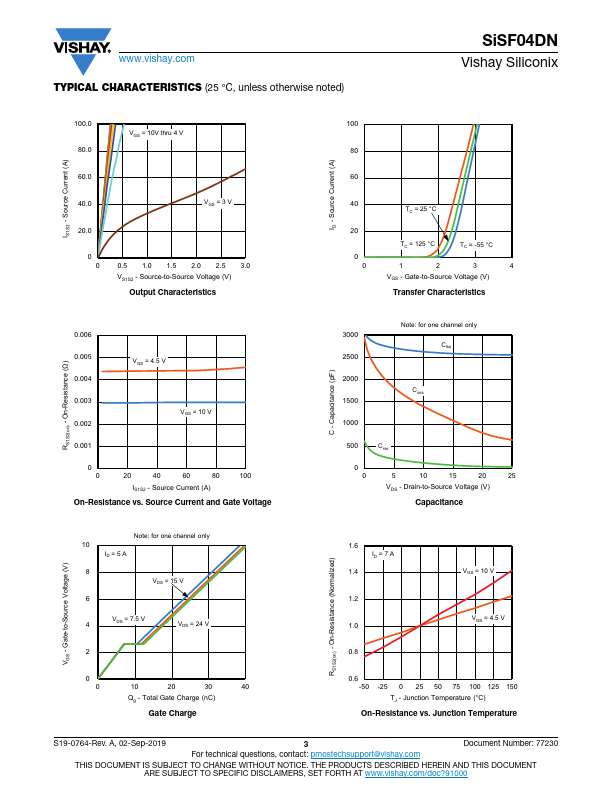

SiSF04DN Datasheet Preview — Preview of SiSF04DN PDF

Datasheet Specifications

Part number: SiSF04DN
Manufacturer: Vishay ↗
File Size: 186.59 KB
Datasheet: SiSF04DN-Vishay.pdf
Description: Dual N-Channel 30V MOSFET

Features

* TrenchFET® Gen IV power MOSFET
* Very low source-to-source on resistance
* Integrated common-drain n-channel MOSFETs in a compact and thermally enhanced package
* 100 % Rg and UIS tested
* Optimizes circuit layout for bi-directional current flow
* Ma

Applications

* S1
* Battery protection switch
* Bi-directional switch
* Load switch G1 N-Channel 1 MOSFET N-Channel 2 MOSFET G2 S2 ORDERING INFORMATION Package Lead (Pb)-free and halogen-free PowerPAK 1212-8SCD SiSF04DN-T1-GE3 ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise
