T85HF20

Power Rectifier Diodes

Vishay

T85HF20 Features

* Electrically isolated base plate

* Types up to 1200 VRRM

* 3500 VRMS isolating voltage

* Simplified mechanical designs, rapid assembly

* High surge capability

* Large creepage distances

* UL E78996 approved

* Compliant to RoHS directi

T85HF20 General Description

These series of T-modules use standard recovery power rectifier diodes. The semiconductors are electrically isolated from the metal base, allowing common heatsink and compact assembly to be built. Applications include power supplies, battery charges, welders, motor controls and general i.

T85HF20 Datasheet (287.81 KB)

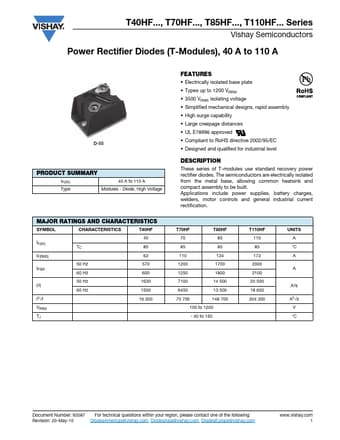

T85HF20 Datasheet Preview — Preview of T85HF20 PDF

Datasheet Details

Part number:

T85HF20

Manufacturer:

Vishay ↗

File Size:

287.81 KB

Description:

Power rectifier diodes.
T40HF, T70HF, T85HF, T110HF Series Vishay Semiconductors Power Rectifier Diodes (T-Modules), 40 A to 110 A D-55 PRODUCT SUMMARY IF(AV) 40 A to 110.
