TDSY5160, TDSY5150 (TDSY5150 / TDSY5160) Standard 7-Segment Display 13 mm

TDSY5160 Description

TDSG5150, TDSG5160, TDSO5150, TDSO5160, TDSY5150, TDSY5160 www.vishay.com Vishay Semiconductors Standard 7-Segment Display 13 mm .
The TDS.

TDSY5160 Features

* Evenly lighted segments
* Grey package surface
* Untinted segments
* Luminous intensity categorized
* Yellow and green categorized for color
* Wide viewing angle
* Suitable for DC and high peak current 19237
* Material categorization

TDSY5160 Applications

* include instruments, panel meters, point-of-sale terminals and household equipment. APPLICATIONS
* Panel meters
* Test- and measure-equipment
* Point-of-sale terminals
* Control units
* TV sets PRODUCT GROUP AND PACKAGE DATA
* Product group: Display

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TDSY5160, TDSY5150. Please refer to the document for exact specifications by model.

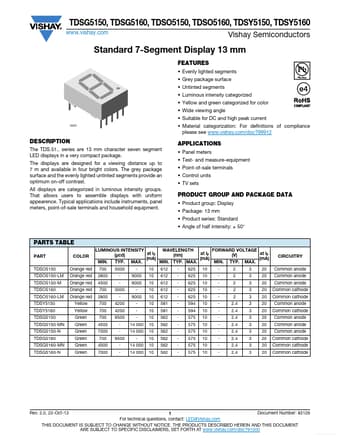

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TDSY5160, TDSY5150
Manufacturer
Vishay ↗
File Size
172.23 KB
Datasheet
TDSY5150-Vishay.pdf
Description
(TDSY5150 / TDSY5160) Standard 7-Segment Display 13 mm
Note
This datasheet PDF includes multiple part numbers: TDSY5160, TDSY5150.
Please refer to the document for exact specifications by model.
