TMPG06-9.1A, TMPG06-6.8A Transient Voltage Suppressors

TMPG06-9.1A Description

Transient Voltage Suppressors TMPG06-6.8A - TMPG06-43A Vishaymas General Semiconductor MPG06 PRIMARY CHARACTERISTICS VBR VWM PPPM PD IFSM TJ max..

TMPG06-9.1A Features

* Available in uni-directional polarity only
* 400 W peak pulse power capability with a 10/1000 μs waveform, repetitive rate (duty cycle): 0.01 %
* Excellent clamping capability
* Very fast response time
* Low incremental resistance
* Solder dip 275 °C

TMPG06-9.1A Applications

* Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, automotive, and telecommunication. MECHANICAL DATA Case: MPG06, molded epoxy over passivated junction

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TMPG06-9.1A, TMPG06-6.8A. Please refer to the document for exact specifications by model.

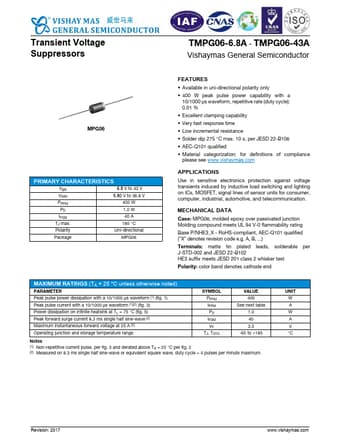

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TMPG06-9.1A, TMPG06-6.8A
Manufacturer
Vishay ↗
File Size
493.83 KB
Datasheet
TMPG06-6.8A-Vishay.pdf
Description
Transient Voltage Suppressors
Note
This datasheet PDF includes multiple part numbers: TMPG06-9.1A, TMPG06-6.8A.
Please refer to the document for exact specifications by model.
