TR3 Datasheet - Vishay

TR3 - Solid Tantalum Surface Mount Capacitors

www.vishay.com TR3 Vishay Sprague Solid Tantalum Surface Mount Chip Capacitors TANTAMOUNT™, Molded Case, Low ESR ADDITIONAL RESOURCES 3D 3D 3D Models Calculators Related Documents Did You Know T Technical Notes PERFORMANCE / ELECTRICAL CHARACTERISTICS www.vishay.com/doc?40192 Operating Temperature: -55 °C to +125 °C (above 85 °C, voltage derating is required) Capacitance Range: 0.47 μF to 1000 μF Capacitance Tolerance: ± 10 %, ± 20 % Voltage Rating: 4 VDC to 75 VDC Note For r

TR3 Features

* Low ESR

* 100 % surge current tested (C, D, and E case sizes) Available

* Qualified to EIA-717

* Molded case available in seven case codes Available

* High ripple current carrying capability

* Terminations: 100 % matte tin standard, tin / le

TR3_Vishay.pdf

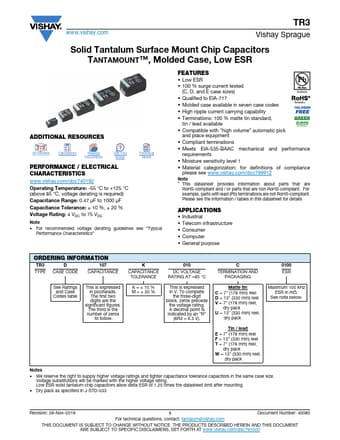

Preview of TR3 PDF
TR3 Datasheet Preview Page 2 TR3 Datasheet Preview Page 3

Datasheet Details

Part number:

TR3

Manufacturer:

Vishay ↗

File Size:

513.21 KB

Description:

Solid tantalum surface mount capacitors.
