TSOP1737WI1, TSOP1730WI1 Photo Module

TSOP1737WI1 Description

TSOP17..WI1 Vishay Telefunken Photo Modules for PCM Remote Control Systems Available types for different carrier frequencies Type TSOP1730WI1 TSOP1.
The TSOP17. series are miniaturized receivers for infrared remote control systems.

TSOP1737WI1 Features

* D Photo detector and preamplifier in one package D Internal filter for PCM frequency D Improved shielding against electrical field disturbance D TTL and CMOS compatibility D Output active low D Low power consumption D High immunity against ambient light D Continuous data transmission possible (up t

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TSOP1737WI1, TSOP1730WI1. Please refer to the document for exact specifications by model.

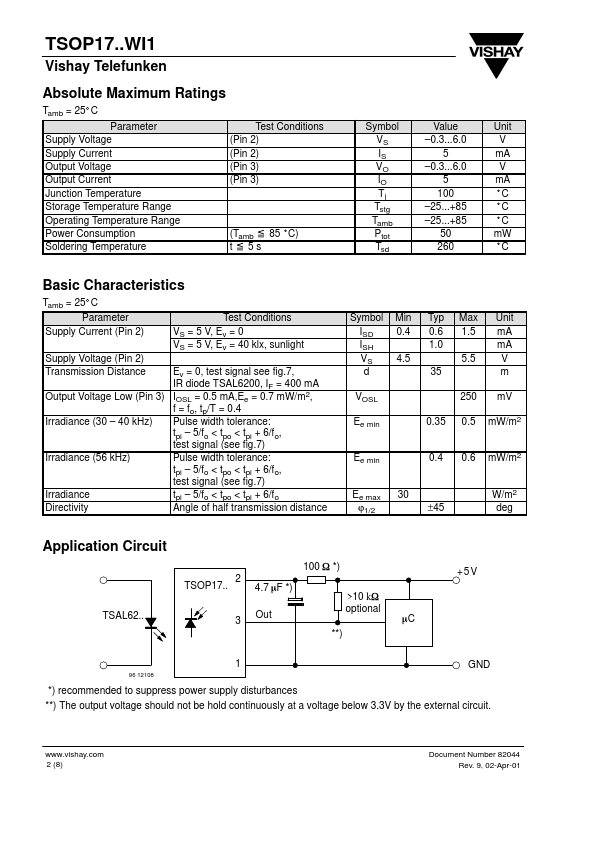

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TSOP1737WI1, TSOP1730WI1
Manufacturer
Vishay ↗
File Size
140.47 KB
Datasheet
TSOP1730WI1-Vishay.pdf
Description
Photo Module
Note
This datasheet PDF includes multiple part numbers: TSOP1737WI1, TSOP1730WI1.
Please refer to the document for exact specifications by model.
