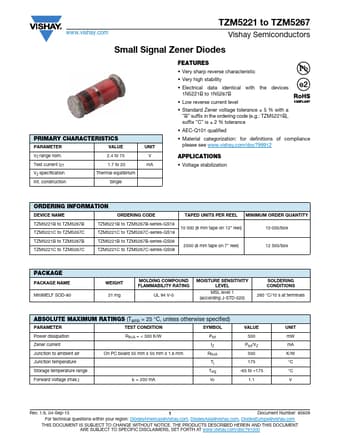

TZM5230, TZM5221 - Small Signal Zener Diodes

Vishay

Datasheet Details

Part number	TZM5230, TZM5221
Manufacturer	Vishay
File Size	77.15 KB
Description	Small Signal Zener Diodes
Datasheet	TZM5221-Vishay.pdf
Note	This datasheet PDF includes multiple part numbers: TZM5230, TZM5221. Please refer to the document for exact specifications by model.

Very sharp reverse characteristic.
Very high stability.
Electrical data identical with the devices 1N5221B to 1N5267B.
Low reverse current level.
Standard Zener voltage tolerance ± 5 % with a “B” suffix in the ordering code (e. g. : TZM5221B), suffix “C” is ± 2 % tolerance.
AEC-Q101 qualified.
Material categorization: for definitions of compliance please see www. vishay. com/doc?99912.
