TZM5250B, TZM5221B, Small Signal Zener Diodes

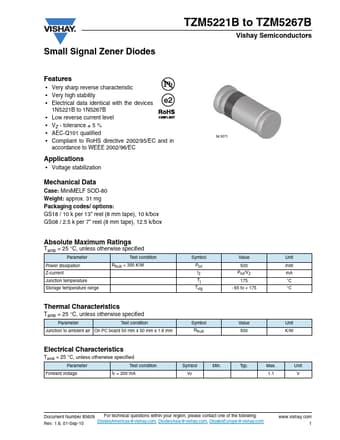

Small Signal Zener Diodes TZM5221B to TZM5267B Vishay Semiconductors .

TZM5221B-Vishay.pdf

TZM5250B Datasheet Preview — This datasheet PDF includes multiple part numbers: TZM5250B, TZM5221B. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

TZM5250B, TZM5221B

Manufacturer:

Vishay ↗

File Size:

218.35 KB

Description:

Small Signal Zener Diodes

Note:

This datasheet PDF includes multiple part numbers: TZM5250B, TZM5221B.
Please refer to the document for exact specifications by model.

Features

* Very sharp reverse characteristic
* Very high stability
* Electrical data identical with the devices 1N5221B to 1N5267B
* Low reverse current level
* VZ - tolerance ± 5 %
* AEC-Q101 qualified
* Compliant to RoHS directive 2002/95/EC and in ac

Applications

* Voltage stabilization Mechanical Data Case: MiniMELF SOD-80 Weight: approx. 31 mg Packaging codes/ options: GS18 / 10 k per 13" reel (8 mm tape), 10 k/box GS08 / 2.5 k per 7" reel (8 mm tape), 12.5 k/box 94 9371 Absolute Maximum Ratings Tamb = 25 °C, unless otherwise specified Parameter
