TZM5264, TZM5221, Small Signal Zener Diodes

www.vishay.com TZM5221 to TZM5267 Vishay Semiconductors Small Signal Zener Diodes PRIMARY CHARACTERISTICS PARAMETER VALUE VZ range nom.Test cur.

TZM5221-Vishay.pdf

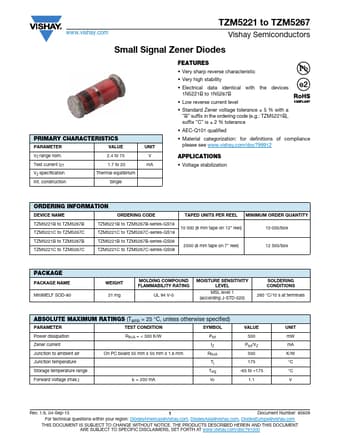

TZM5264 Datasheet Preview — This datasheet PDF includes multiple part numbers: TZM5264, TZM5221. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

TZM5264, TZM5221

Manufacturer:

Vishay ↗

File Size:

77.15 KB

Description:

Small Signal Zener Diodes

Note:

This datasheet PDF includes multiple part numbers: TZM5264, TZM5221.
Please refer to the document for exact specifications by model.

Features

* Very sharp reverse characteristic
* Very high stability
* Electrical data identical with the devices 1N5221B to 1N5267B
* Low reverse current level
* Standard Zener voltage tolerance ± 5 % with a “B” suffix in the ordering code (e. g. : TZM5221B), suffix “C” i

Applications

* Voltage stabilization ORDERING INFORMATION DEVICE NAME ORDERING CODE TAPED UNITS PER REEL MINIMUM ORDER QUANTITY TZM5221B to TZM5267B TZM5221C to TZM5267C TZM5221B to TZM5267B-series-GS18 10 000 (8 mm tape on 13" reel) TZM5221C to TZM5267C-series-GS18 10 000/box TZM5221B to TZM5267
