* Very sharp reverse characteristic
* Low reverse current level
* Very high stability
* Low noise
* TZMC - VZ-tolerance ± 5 %
* TZMB - VZ-tolerance ± 2 %
* AEC-Q101 qualified
* Material categorization: For definitions of compliance plea

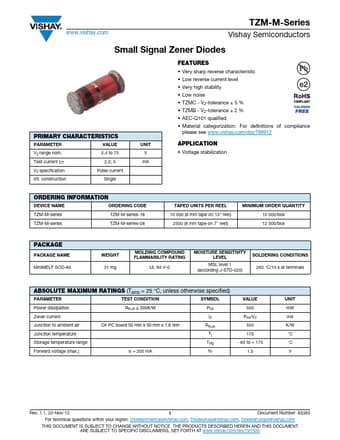

TZMB9V1-M Datasheet (102.37 KB)
TZMB9V1-M
102.37 KB
Small signal zener diodes.
www.vishay.com
TZM-M-Series
Vishay Semiconductors
Small Signal Zener Diodes
PRIMARY CHARACTERISTICS
PARAMETER
VALUE
VZ range nom. Test current I.
