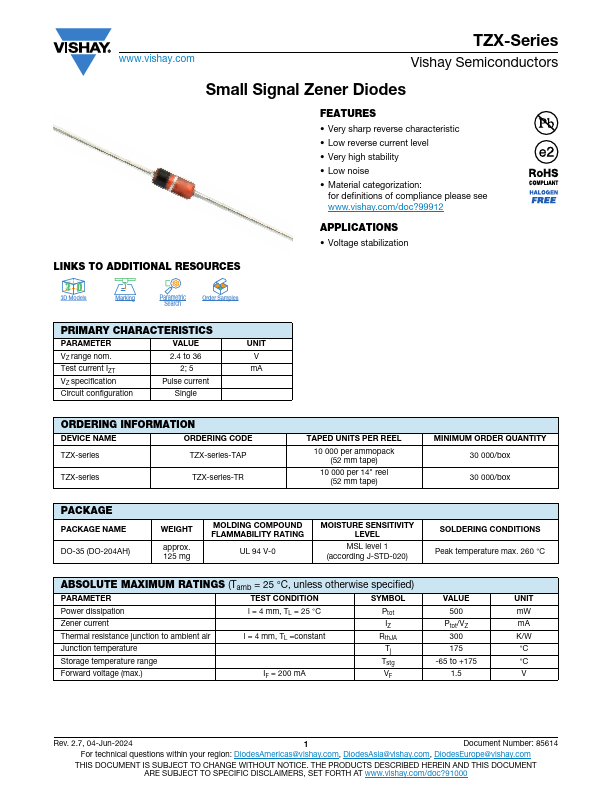

TZX12X, TZX2V4A Small Signal Zener Diodes

Vishay

Description

www.vishay.com TZX-Series Vishay Semiconductors Small Signal Zener Diodes .

📥 Download Datasheet

TZX12X Datasheet Preview — This datasheet PDF includes multiple part numbers: TZX12X, TZX2V4A. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: TZX12X, TZX2V4A
Manufacturer: Vishay ↗
File Size: 122.52 KB
Datasheet: TZX2V4A-Vishay.pdf
Description: Small Signal Zener Diodes
Note: This datasheet PDF includes multiple part numbers: TZX12X, TZX2V4A.
Please refer to the document for exact specifications by model.

Features

* Very sharp reverse characteristic
* Low reverse current level
* Very high stability
* Low noise

Applications

* Voltage stabilization LINKS TO ADDITIONAL RESOURCES 3D 3D 3D Models Marking Parametric Search Order Samples PRIMARY CHARACTERISTICS PARAMETER VALUE VZ range nom. Test current IZT VZ specification Circuit configuration 2.4 to 36 2; 5 Pulse current Single UNIT V mA ORDERING INFOR
