TZX13B, TZX2V4A Small Signal Zener Diodes

TZX13B Description

www.vishay.com TZX-Series Vishay Semiconductors Small Signal Zener Diodes .

TZX13B Features

* Very sharp reverse characteristic
* Low reverse current level
* Very high stability
* Low noise

TZX13B Applications

* Voltage stabilization LINKS TO ADDITIONAL RESOURCES 3D 3D 3D Models Marking Parametric Search Order Samples PRIMARY CHARACTERISTICS PARAMETER VALUE VZ range nom. Test current IZT VZ specification Circuit configuration 2.4 to 36 2; 5 Pulse current Single UNIT V mA ORDERING INFOR

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TZX13B, TZX2V4A. Please refer to the document for exact specifications by model.

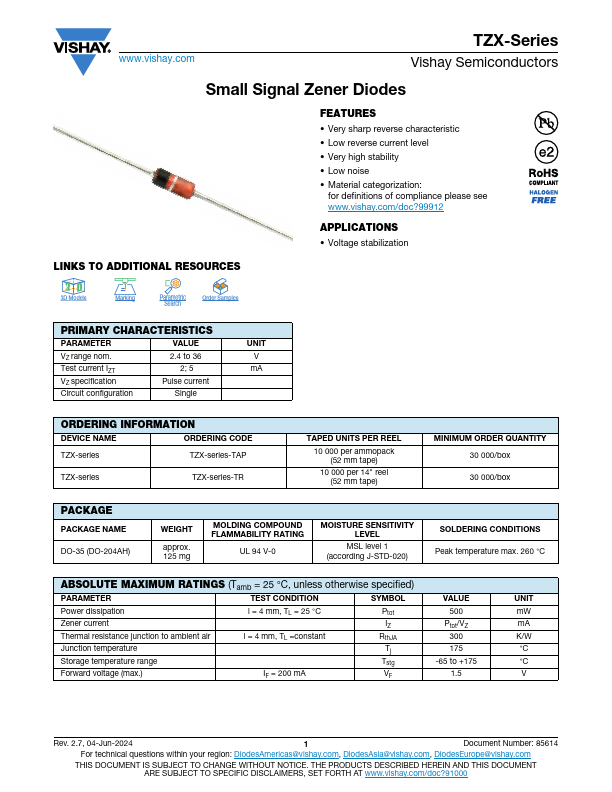

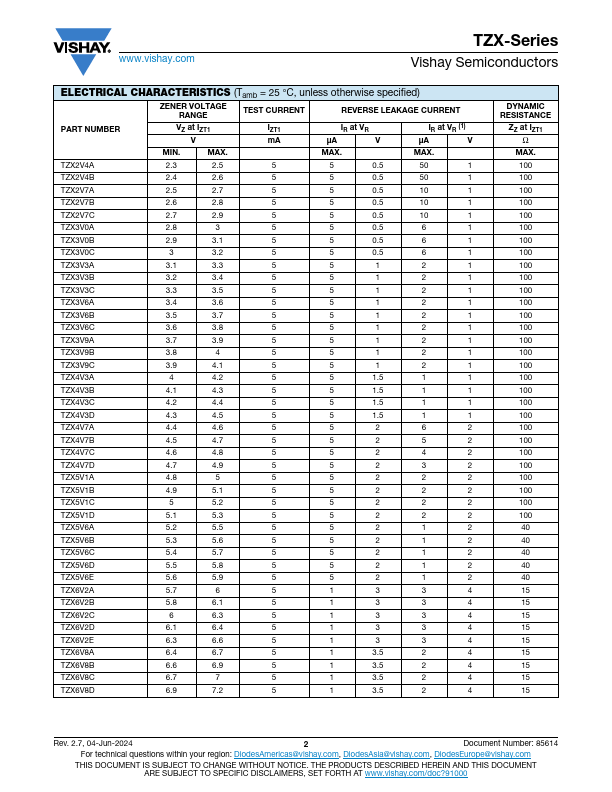

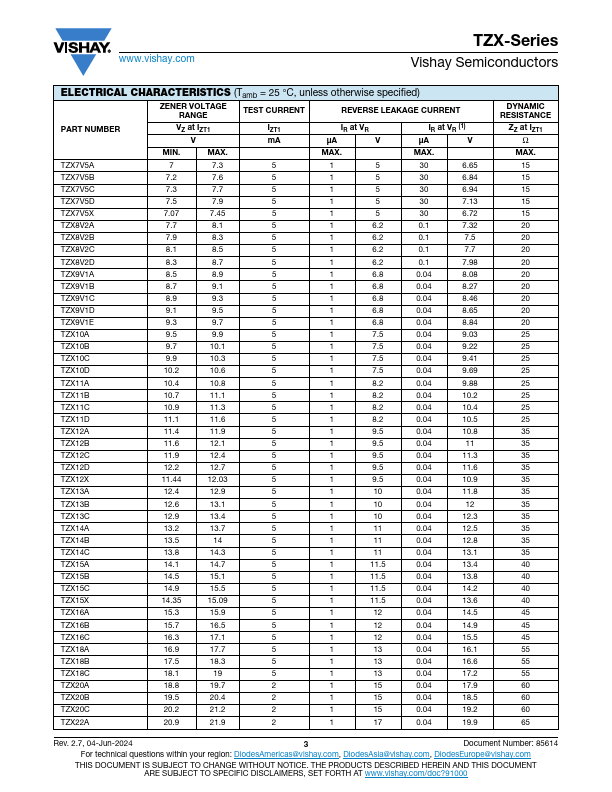

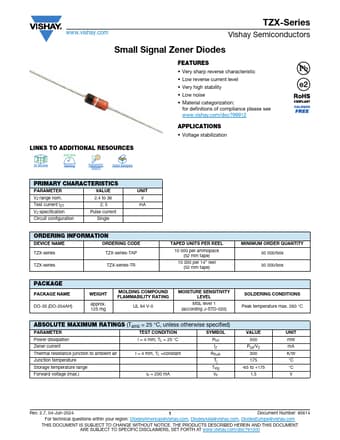

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TZX13B, TZX2V4A
Manufacturer
Vishay ↗
File Size
122.52 KB
Datasheet
TZX2V4A-Vishay.pdf
Description
Small Signal Zener Diodes
Note
This datasheet PDF includes multiple part numbers: TZX13B, TZX2V4A.
Please refer to the document for exact specifications by model.
