TZX9V1D, TZX2V4A, Small Signal Zener Diodes

www.vishay.com TZX-Series Vishay Semiconductors Small Signal Zener Diodes .

datasheet Preview Page 1 from Datasheet4u.com

TZX2V4A-Vishay.pdf

TZX9V1D Datasheet Preview — This datasheet PDF includes multiple part numbers: TZX9V1D, TZX2V4A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

TZX9V1D, TZX2V4A

Manufacturer:

Vishay ↗

File Size:

122.52 KB

Description:

Small Signal Zener Diodes

Note:

This datasheet PDF includes multiple part numbers: TZX9V1D, TZX2V4A.
Please refer to the document for exact specifications by model.

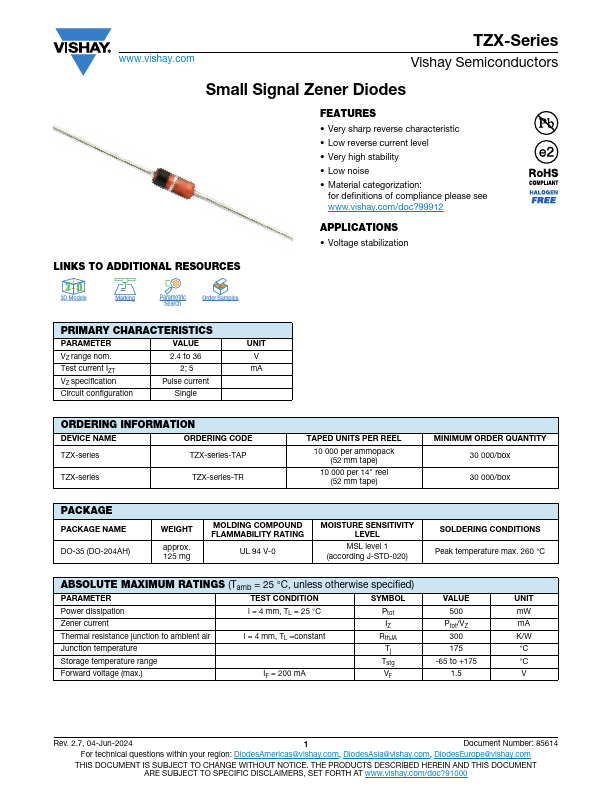

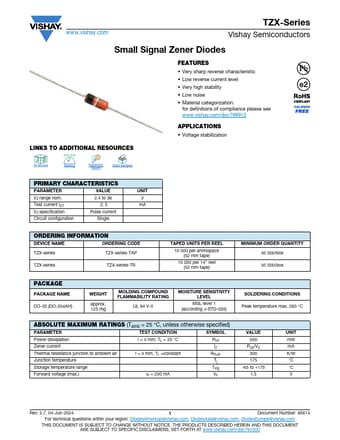

Features

* Very sharp reverse characteristic
* Low reverse current level
* Very high stability
* Low noise

Applications

* Voltage stabilization LINKS TO ADDITIONAL RESOURCES 3D 3D 3D Models Marking Parametric Search Order Samples PRIMARY CHARACTERISTICS PARAMETER VALUE VZ range nom. Test current IZT VZ specification Circuit configuration 2.4 to 36 2; 5 Pulse current Single UNIT V mA ORDERING INFOR
