UF4001 Ultrafast Plastic Rectifier

UF4001 Description

UF4001, UF4002, UF4003, UF4004, UF4005, UF4006, UF4007 www.vishay.com Vishay General Semiconductor Ultrafast Plastic Rectifier DO-41 (DO-204AL) F.

UF4001 Features

* Glass passivated chip junction
* Ultrafast reverse recovery time
* Low forward voltage drop
* Low switching losses, high efficiency
* High forward surge capability
* Solder dip 275 °C max. 10 s, per JESD 22-B106
* Material categorization: for

UF4001 Applications

* For use in high frequency rectification and freewheeling application in switching mode converters and inverters for consumer, computer, and telecommunication. MECHANICAL DATA Case: DO-41 (DO-204AL) Molding compound meets UL 94 V-0 flammability rating Base P/N-E3 - RoHS-compliant, commercial grade Ba

📥 Download Datasheet

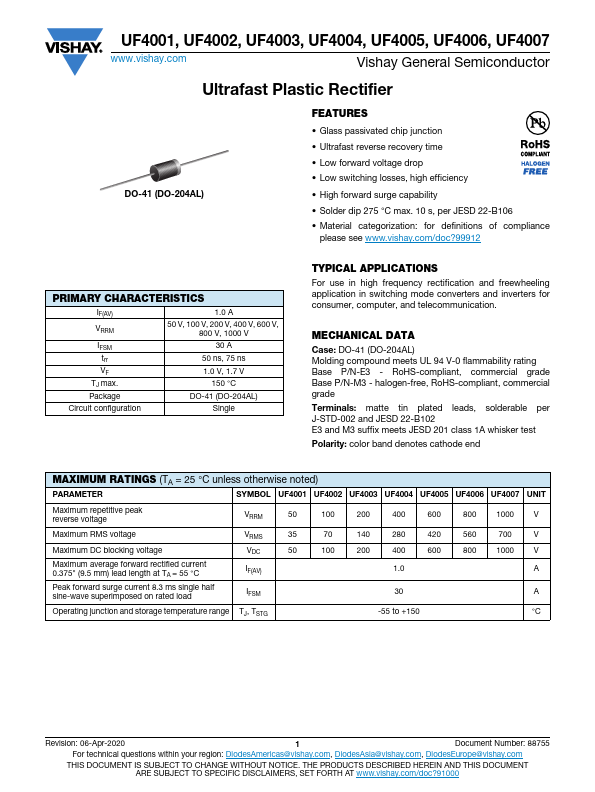

Preview of UF4001 PDF

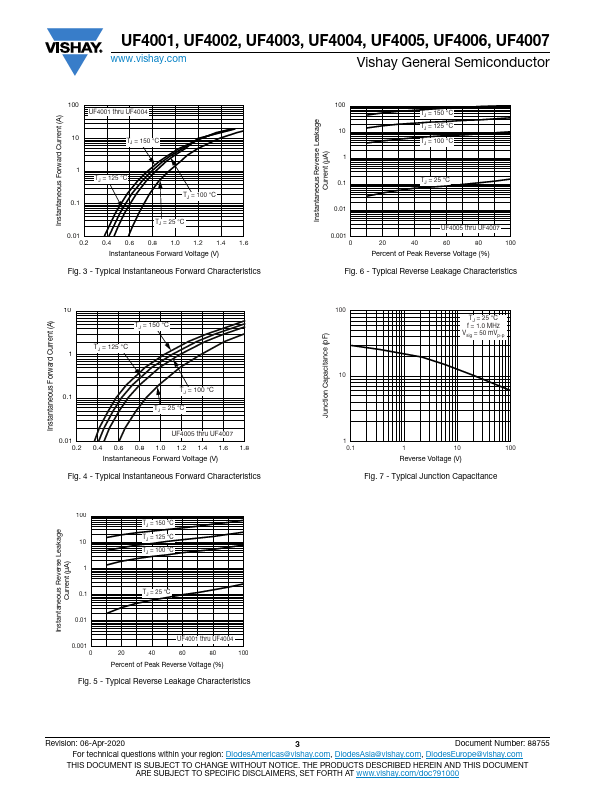

datasheet Preview Page 2 datasheet Preview Page 3
