V25PN60, Trench MOS Barrier Schottky Rectifier

www.vishay.com V25PN60 Vishay General Semiconductor High Current Density Surface Mount TMBS® (Trench MOS Barrier Schottky) Rectifier Ultra Low VF = .

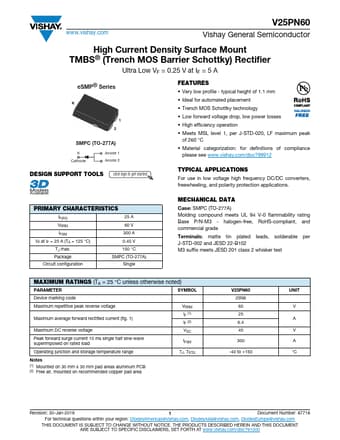

datasheet Preview Page 1 from Datasheet4u.com

V25PN60-Vishay.pdf

V25PN60 Datasheet Preview — Preview of V25PN60 PDF

Datasheet Details

Part number:

V25PN60

Manufacturer:

Vishay ↗

File Size:

95.26 KB

Description:

Trench MOS Barrier Schottky Rectifier

Features

* Very low profile - typical height of 1.1 mm
* Ideal for automated placement
* Trench MOS Schottky technology
* Low forward voltage drop, low power losses
* High efficiency operation
* Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C

Applications

* For use in low voltage high frequency DC/DC converters, freewheeling, and polarity protection applications. MECHANICAL DATA Case: SMPC (TO-277A) Molding compound meets UL 94 V-0 flammability rating Base P/N-M3 - halogen-free, RoHS-compliant, and commercial grade Terminals: matte tin plated leads, s
