V6KM120DU, Trench MOS Barrier Schottky Rectifier

www.vishay.com V6KM120DU Vishay General Semiconductor High Current Density Surface-Mount Trench MOS Barrier Schottky Rectifier Ultra Low VF = 0.51 V.

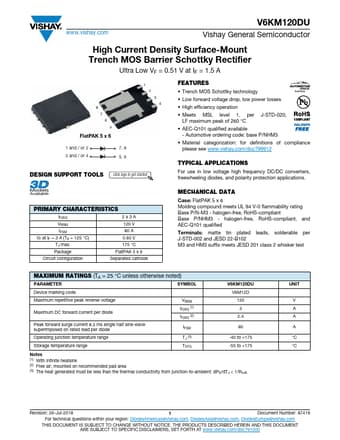

datasheet Preview Page 1 from Datasheet4u.com

V6KM120DU-Vishay.pdf

V6KM120DU Datasheet Preview — Preview of V6KM120DU PDF

Datasheet Details

Part number:

V6KM120DU

Manufacturer:

Vishay ↗

File Size:

131.20 KB

Description:

Trench MOS Barrier Schottky Rectifier

Features

* Trench MOS Schottky technology Available
* Low forward voltage drop, low power losses
* High efficiency operation
* Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C
* AEC-Q101 qualified available - Automotive ordering code: base P/NHM3

Applications

* For use in low voltage high frequency DC/DC converters, freewheeling diodes, and polarity protection applications. Models Available PRIMARY CHARACTERISTICS IF(AV) VRRM IFSM VF at IF = 3 A (TA = 125 °C) TJ max. Package 2x3A 120 V 80 A 0.60 V 175 °C FlatPAK 5 x 6 Circuit configuration Separated
