VACR3004

Aluminum Housed Compact Wirewound Resistor

VACR3004 Features

* Power rating up to 500 W

* High overload capacity

* Protection IP20 or IP65

* Enhanced humidity protection

* Complete housed construction

* Multiple construction for higher power rating

* Heatsink mounting

* Material categorization: f

VACR3004 General Description

Part Number: VACR1003VUB1000K00 V A C R 1 0 0 3 V U B 1 0 SIZE: 60 mm x 30 mm 15 % 500 600 650 750 750 900 900 1000 1250 1250 1500 1500 2000 2000 2500 25 % 300 360 390 450 450 540 540 600 750 750 900 900 1200 1200 1500 40 % 200 240 260 300 300 360 360 400 500 500 600 600 800 800 100.

VACR3004 Datasheet (119.47 KB)

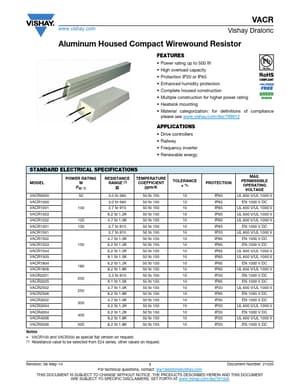

Preview of VACR3004 PDF

Datasheet Details

Part number:

VACR3004

Manufacturer:

Vishay ↗

File Size:

119.47 KB

Description:

Aluminum housed compact wirewound resistor.
