VACR5006, VACR0500, Aluminum Housed Compact Wirewound Resistor

www.vishay.com VACR Vishay Draloric Aluminum Housed Compact Wirewound Resistor .
Part Number: VACR1003VUB1000K00 V A C R 1 0 0 3 V U B 1 0 SIZE: 60 mm x 30 mm 15 % 500 600 650 750 750 900 900 1000 1250 1250 1500 1500.

VACR0500_Vishay.pdf

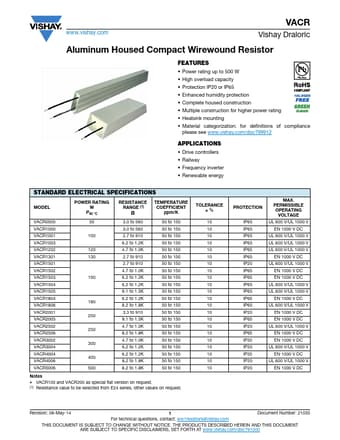

VACR5006 Datasheet Preview — This datasheet PDF includes multiple part numbers: VACR5006, VACR0500. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

VACR5006, VACR0500

Manufacturer:

Vishay ↗

File Size:

119.47 KB

Description:

Aluminum Housed Compact Wirewound Resistor

Note:

This datasheet PDF includes multiple part numbers: VACR5006, VACR0500.
Please refer to the document for exact specifications by model.

Features

* Power rating up to 500 W
* High overload capacity
* Protection IP20 or IP65
* Enhanced humidity protection
* Complete housed construction
* Multiple construction for higher power rating
* Heatsink mounting
* Material categorization: f

Applications

* Drive controllers
* Railway
* Frequency inverter
* Renewable energy STANDARD ELECTRICAL SPECIFICATIONS MODEL POWER RATING W P40 °C RESISTANCE RANGE (1)  TEMPERATURE COEFFICIENT ppm/K VACR0500 VACR1000 VACR1001 VACR1003 VACR1202 VACR1301 VACR1501 VACR1502 VACR
