VCUT0505B-HD1 - Single Line ESD-Protection Diode

Vishay

📥 Download Datasheet

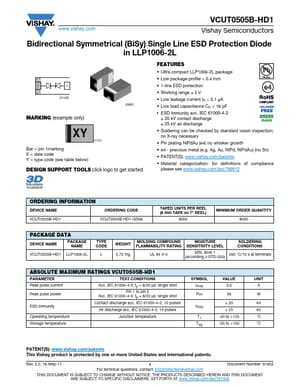

VCUT0505B-HD1 Datasheet Preview — Preview of VCUT0505B-HD1 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: VCUT0505B-HD1
Manufacturer: Vishay ↗
File Size: 122.72 KB
Datasheet: VCUT0505B-HD1_Vishay.pdf
Description: Single Line ESD-Protection Diode

VCUT0505B-HD1 Product details

Features

Ultra compact LLP1006-2L package Low package profile < 0.4 mm 1-line ESD-protection Working range ± 5 V Low leakage current IR < 0.1 µA Low load capacitance CD = 18 pF ESD-protection acc. IEC 61000-4-2 ± 20 kV contact discharge ± 25 kV air discharge Soldering can be checked by standard vision inspection; no X-ray necessary Pin plating NiPdAu (e4) no whisker growth e4 - precious metal (e. g. Ag, Au, NiPd, NiPdAu) (no Sn) Complia.
